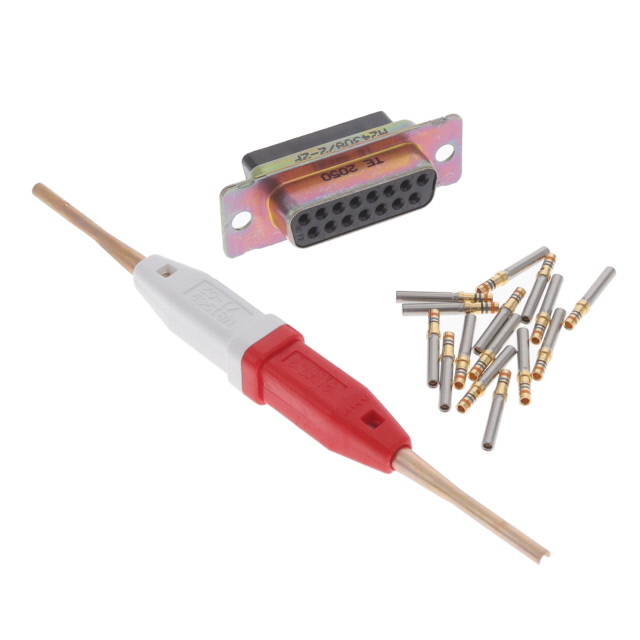

205557-3
Or copy the link below:
- Mfr.Part #
- 205557-3
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS CRIMP
- Stock
- 13
- In Stock ：
- 13
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub Connector Assemblies
- Length :
- 39.52mm
- Connector Type :
- Receptacle, Female Sockets
- IEC Conformance :
- No
- Total Number of Contacts :
- 15
- Contact Type :
- Signal
- Packaging :
- Bulk
- Contact Design :
- PREASSEM CONN
- Shell Material, Finish :
- Steel, Cadmium Plated
- Operating Temperature :
- -55°C~125°C
- Shell Size, Connector Layout :
- 2 DA A
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Reliability :
- COMMERCIAL
- Hole Diameter :
- 3.048 mm
- Color :
- Black
- Orientation :
- Straight
- Body Breadth :
- 0.509 inch
- Mounting Type :
- Free Hanging (In-Line)
- ELV :
- Non-Compliant
- Factory Lead Time :
- 11 Weeks
- Option :
- GENERAL PURPOSE
- Current Rating :
- 7.5A
- Contact Material :
- Copper, Nickel
- Flange Feature :
- Housing/Shell (Unthreaded)
- Published :
- 2009
- HTS Code :
- 8536.69.40.30
- DIN Conformance :
- No
- Sealable :
- No
- Filter Feature :
- No
- Number of Rows :
- 2
- Connector Style :
- D-Sub
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 109
- ECCN Code :
- EAR99
- Gender :
- FEMALE
- Plating :
- Cadmium
- MIL Conformance :
- No
- Contact Finish :
- Gold
- Dielectric Material :
- Polyester
- Termination :
- Crimp
- Mixed Contacts :
- No
- Number of Ports :
- 1
- Depth :
- 11.15mm
- Empty Shell :
- No
- Mount :
- Panel
- Number of Positions :
- 15
- Shell Material :
- Steel
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Datasheets
- 205557-3
Military, MIL-DTL-24308, AMPLIMITE 109 Series D-Sub Receptacle, Female Sockets 15-Position Female Signal Crimp 2 DA A Free Hanging (In-Line) Copper, Nickel Gold Steel, Cadmium Plated
205557-3 Overview
This product is packaged in a Receptacle, Female Sockets carton.It's mounted Free Hanging (In-Line).We use a Bulk case to package the product.It's from the Military, MIL-DTL-24308, AMPLIMITE 109 Series.You can manage a variety of tasks with its 1 ports.It's mounted by Panel.-55°C~125°C Operating Temperature is what the device runs at.
205557-3 Features
Military, MIL-DTL-24308, AMPLIMITE 109 series
205557-3 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
205557-3 D-Sub Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
