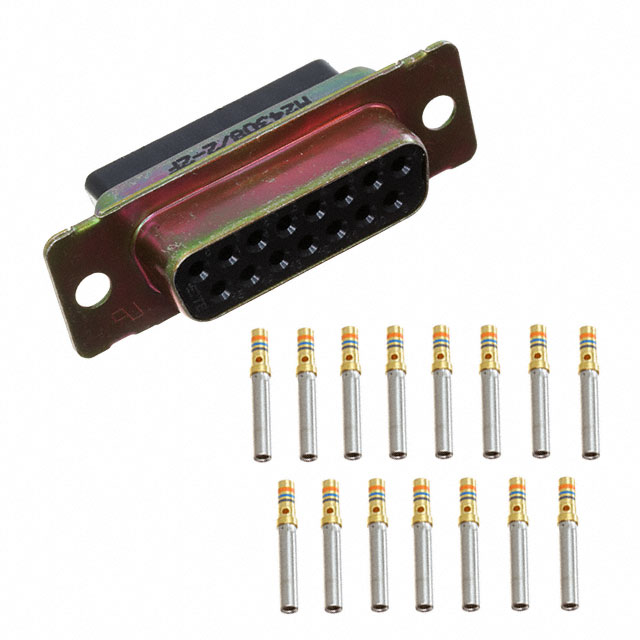

205557-2
Or copy the link below:
- Mfr.Part #
- 205557-2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS CRIMP
- Stock
- 150
- In Stock ：
- 150
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub Connector Assemblies
- Plating :
- Cadmium
- Connector Style :
- D-Sub
- Mixed Contacts :
- No
- ELV :
- Non-Compliant
- Contact Design :
- PREASSEM CONN
- HTS Code :
- 8536.69.40.30
- Factory Lead Time :
- 11 Weeks
- Number of Positions :
- 15
- DIN Conformance :
- No
- Contact Material :
- Copper, Nickel
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Mounting Type :
- Free Hanging (In-Line)
- Option :
- GENERAL PURPOSE
- IEC Conformance :
- No
- Length :
- 39.52mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Total Number of Contacts :
- 15
- ECCN Code :
- EAR99
- Empty Shell :
- No
- Hole Diameter :
- 3.048 mm
- Shell Material, Finish :
- Steel, Cadmium Plated
- Number of Ports :
- 1
- Contact Finish :
- Gold
- Sealable :
- No
- Body Breadth :
- 0.509 inch
- Shell Size, Connector Layout :
- 2 DA A
- MIL Conformance :
- No
- Depth :
- 16.84mm
- Filter Feature :
- No
- Termination :
- Crimp
- Operating Temperature :
- -55°C~125°C
- Published :
- 2005
- Contact Type :
- Signal
- Reliability :
- COMMERCIAL
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 109
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Connector Type :
- Receptacle, Female Sockets
- Color :
- Black
- Lead Free :
- Contains Lead
- Shell Material :
- Steel
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Current Rating :
- 7.5A
- Mount :
- Panel
- Orientation :
- Straight
- Material :
- Metal
- Dielectric Material :
- Polyester
- Flange Feature :
- Housing/Shell (Unthreaded)
- Packaging :
- Bulk
- RoHS Status :
- Non-RoHS Compliant
- Gender :
- Receptacle
- Number of Rows :
- 2
- Datasheets
- 205557-2
Military, MIL-DTL-24308, AMPLIMITE 109 Series D-Sub Receptacle, Female Sockets 15-Position Receptacle Signal Crimp 2 DA A Free Hanging (In-Line) Copper, Nickel Gold Steel, Cadmium Plated
205557-2 Overview
A Receptacle, Female Sockets package is included with it.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Military, MIL-DTL-24308, AMPLIMITE 109 Series.With 1 ports, it is capable of managing a wide range of tasks.By Panel, the part is mounted.Operating temperature is set to -55°C~125°C.
205557-2 Features
Military, MIL-DTL-24308, AMPLIMITE 109 series
205557-2 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
205557-2 D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
