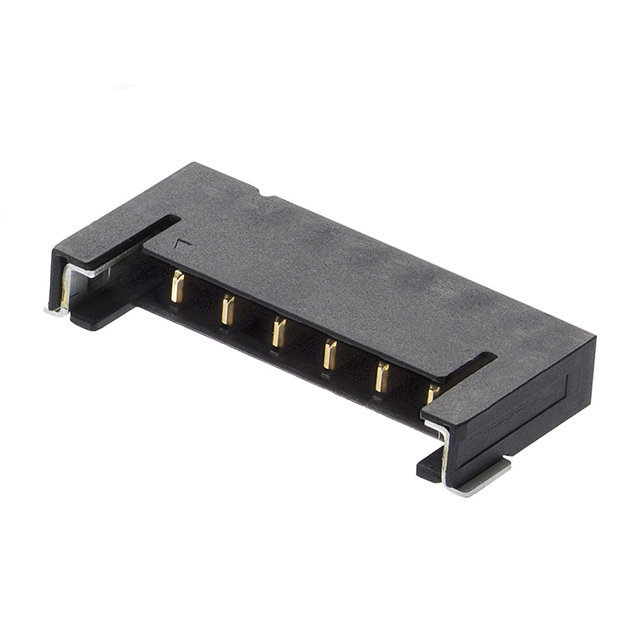

2053380006

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Applications :

Automotive, General Purpose, Industrial, Telecommunications

Product Height (mm) :

2.6(mm)

Material Flammability Rating :

UL94 V-0

Termination Post Length :

-

Fastening Type :

Detent Lock

Product :

Headers

Contact Length - Post :

-

Current Rating (Amps) :

6.5A

Product Length (mm) :

16.75(mm)

Contact Gender :

Pin (Male)

Shrouding :

Shrouded - 4 Wall

Gender :

HDR

Insulation Material :

Polyamide (PA), Nylon

Contact Plating :

Gold

Packaging :

MouseReel

Flammability Rating :

UL 94 V-0

Minimum Operating Temperature :

- 40 C

Number of Positions Loaded :

All

Current Rating (Max) :

6.5/Contact(A)

Mounting Type :

Surface Mount, Right Angle

Connector Type :

Header

Pitch :

2 mm

Contact Type :

-

Series :

205338

Product Status :

Active

Housing Gender :

-

Body Orientation :

RIGHT ANGLE

Pitch (mm) :

2(mm)

Termination Method :

Solder

Contact Shape :

RECTANGULAR

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Contact Finish Thickness - Post :

-

Number of Positions :

6 Position

Operating Temperature :

-40°C ~ 105°C

IP Rating :

-

Number of Rows :

1 Row

Operating Temp Range :

-40C to 105C

Stackable :

No

Overall Contact Length :

-

Contact Material :

COPPER ALLOY

Voltage Rating Max :

250VDC/250VAC

Product Depth (mm) :

7.95(mm)

Current Rating :

6.5 A

Orientation :

RIGHT ANGLE

Housing Material :

Polyamide (PA)

Contact Length - Mating :

-

Contact Finish - Post :

Gold

Contact Finish - Mating :

Gold

Style :

Board to Cable/Wire

Insulation Color :

Black

Insulation Height :

0.102 (2.60mm)

Mounting Angle :

RIGHT ANGLE

Termination Style :

Solder

RoHS :

Details

Housing Color :

Black

Base Product Number :

205338

Row Spacing - Mating :

-

Mated Stacking Heights :

-

Number of Contacts :

6(POS)

Pitch - Mating :

0.079 (2.00mm)

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Row Spacing :

-

Features :

Solder Retention

Maximum Operating Temperature :

+ 105 C

Mounting Style :

SMD/SMT

Type :

SHROUDED

Color :

Black

Ingress Protection :

-

Tradename :

Pico-Lock

Number of Contact Rows :

1

Termination :

Solder

Contact Resistance Max :

20(mohm)

Voltage Rating :

250 VAC/DC
