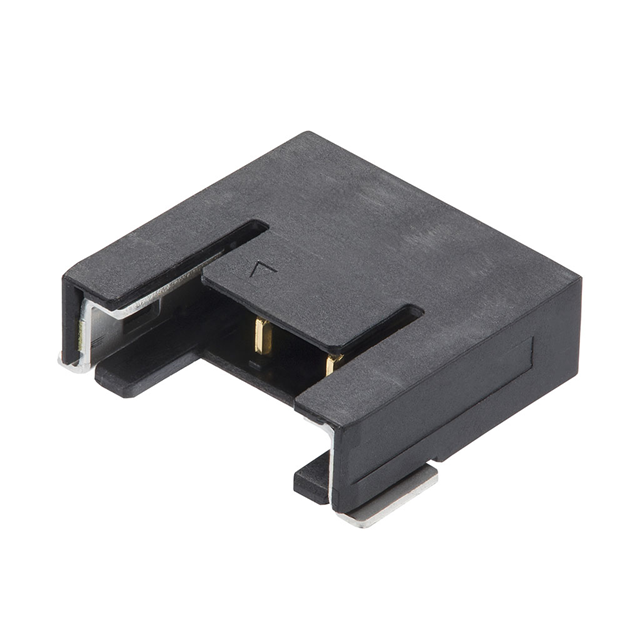

2053380002

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Voltage Rating Max :

250VDC/250VAC

Voltage Rating :

250 VAC/DC

Product Status :

Active

Mounting Angle :

RIGHT ANGLE

Current Rating (Max) :

6.5/Contact(A)

Applications :

Automotive, General Purpose, Industrial, Telecommunications

Termination :

Solder

Maximum Operating Temperature :

+ 105 C

Minimum Operating Temperature :

- 40 C

Termination Style :

Solder

Series :

205338

Type :

SHROUDED

Pitch :

2 mm

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Stackable :

No

Mounting Type :

Surface Mount, Right Angle

Overall Contact Length :

-

Insulation Color :

Black

Ingress Protection :

-

Insulation Material :

Polyamide (PA), Nylon

Application :

Signal, Wire-to-Board

Product Height (mm) :

2.6(mm)

Features :

Solder Retention

Housing Color :

Black

Shrouding :

Shrouded - 4 Wall

Contact Resistance Max :

20(mohm)

Color :

Black

Base Product Number :

205338

Orientation :

RIGHT ANGLE

Number of Contact Rows :

1

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Post :

-

Product :

Headers

Contact Shape :

RECTANGULAR

Row Spacing - Mating :

-

Contact Finish - Mating :

Gold

Contact Plating :

Gold

Contact Length - Post :

-

Contact Type :

-

Number of Positions Loaded :

All

Style :

Board to Cable/Wire

Number of Positions :

2 Position

Operating Temperature :

-40°C ~ 105°C

Packaging :

Cut Tape

Number of Contacts :

2(POS)

Product Depth (mm) :

7.95(mm)

Mated Stacking Heights :

-

Tradename :

Pico-Lock

Product Length (mm) :

8.75(mm)

Termination Method :

Solder

Gender :

HDR

Current Rating :

6.5 A

Current Rating (Amps) :

6.5A

Fastening Type :

Detent Lock

Housing Gender :

-

Body Orientation :

RIGHT ANGLE

Contact Length - Mating :

-

Pitch - Mating :

0.079 (2.00mm)

Contact Material :

COPPER ALLOY

Connector Type :

Header

Housing Material :

Polyamide (PA)

Flammability Rating :

UL 94 V-0

IP Rating :

-

Mounting Style :

SMD/SMT

Contact Finish - Post :

Gold

Insulation Height :

0.102 (2.60mm)

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Pitch (mm) :

2(mm)

Contact Gender :

Pin (Male)

Operating Temp Range :

-40C to 105C

RoHS :

Details

Number of Rows :

1 Row
