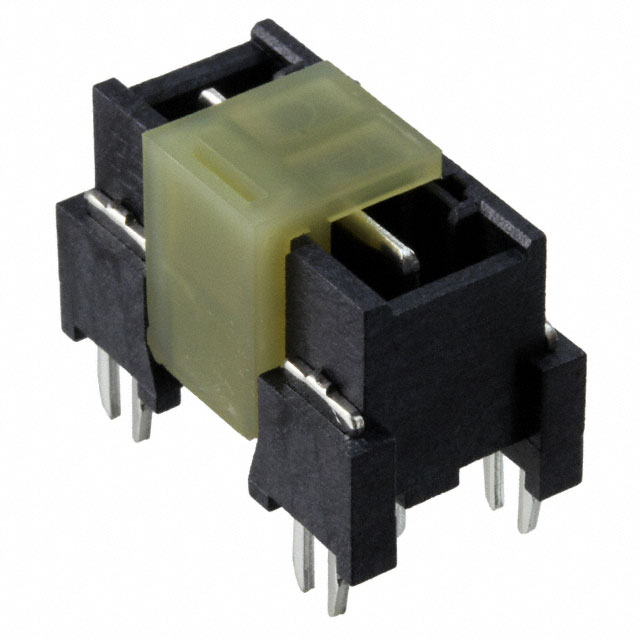

2042274-2
Or copy the link below:
- Mfr.Part #
- 2042274-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 2POS PCB
- Stock
- 3,256
- In Stock ：
- 3,256
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Finish :
- Silver
- Gender :
- Male
- Number of Rows :
- 1
- Published :
- 2010
- Number of Contacts :
- 2
- Lead Free :
- Lead Free
- Pitch :
- 7.8mm
- Number of Power Positions :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 40A
- Housing Material :
- Polymer
- ELV :
- Compliant
- Insulation Material :
- Polymer
- Plating Thickness :
- 76 nm
- Row Spacing :
- 7.8 mm
- Min Operating Temperature :
- -40°C
- Voltage - Rated :
- 500V
- Contact Plating :
- Silver
- Contact Gender :
- Male
- Contact Finish Thickness :
- 118.1μin 3.00μm
- Factory Lead Time :
- 13 Weeks
- Housing Color :
- Black
- Height :
- 15.2mm
- Feature :
- Board Lock
- Contact Retention :
- With
- Mount :
- Through Hole
- PCB Mounting Orientation :
- Vertical
- Orientation :
- Vertical
- Radiation Hardening :
- No
- Contact Material :
- Copper
- REACH SVHC :
- Unknown
- RoHS Status :
- RoHS Compliant
- Flammability Rating :
- UL94 V-0
- Length :
- 18.9mm
- Contact Layout, Typical :
- 2 Power
- Current Rating :
- 45A
- Packaging :
- Tape and Reel (TR)
- Operating Temperature :
- -40°C~125°C
- Max Operating Temperature :
- 125°C
- Mounting Type :
- Through Hole
- Operating Supply Voltage :
- 500V
- Connector Type :
- Header, Male Blades
- Number of Signal Positions :
- 0
- Fastening Type :
- Ramp
- Color :
- Black
- Sealable :
- No
- Number of Positions Loaded :
- All
- Number of Positions :
- 2
- Plating :
- Silver
- Series :
- Elcon Mini
- Material Flammability Rating :
- UL94 V-0
- Circuit Application :
- Power
- Termination :
- Solder
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Number of Ports :
- 1
- Datasheets
- 2042274-2
2042274-2 Documents
Elcon Mini Series Header, Male Blades Solder Silver Black 118.1μin 3.00μm 2 Positions Pitch: 7.8mm -40°C~125°C Tape & Reel (TR) Through Hole
2042274-2 Overview
Packaging is Header, Male Blades.Through Hole is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the Elcon Mini Series, it can be found in this category.Temperatures below 125°C are best for using it.There's a minimum temperature of -40°C for this device.With its Board Lock feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The device is operating at -40°C~125°C Operating Temperature.This device has a total of 1 ports, which can be used for a wide range of tasks.The Backplane Connector is functional when supplied with voltage 500V.
2042274-2 Features
Elcon Mini series
2042274-2 Applications
There are a lot of TE Connectivity AMP Connectors
2042274-2 Backplane Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
