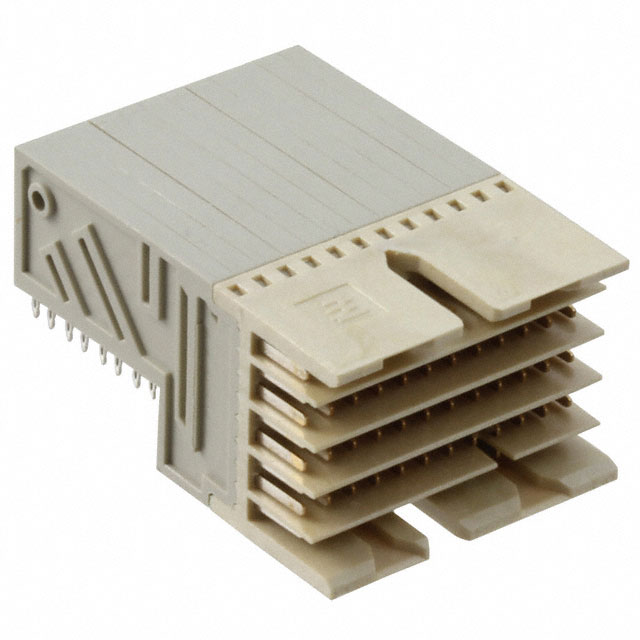

2042139-2
Or copy the link below:
- Mfr.Part #
- 2042139-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 96POS EDGE MNT
- Stock
- 43,974
- In Stock ：
- 43,974
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Termination :
- Press-Fit
- Orientation :
- RIGHT ANGLE
- Number of Signal Positions :
- 192
- RoHS Status :
- RoHS Compliant
- Housing Color :
- Natural
- Number of Contacts :
- 192
- Published :
- 2010
- Width :
- 12.5222mm
- Stackable :
- yes
- Durability Rating :
- 250 Cycles
- Number of Columns :
- 12
- ELV :
- Compliant
- Impedance :
- 30Ohm
- Number of Positions Loaded :
- All
- Stack Height :
- 1.6mm
- Hole Diameter :
- 400 µm
- Contact Current Rating :
- 500mA
- Mating Alignment :
- With
- Height :
- 9.4996mm
- Shrouding :
- Unshrouded
- Plating Thickness :
- 2.5μm
- Current Rating :
- 500mA
- Packaging :
- Tray
- PCB Mounting Orientation :
- RIGHT ANGLE
- Operating Supply Voltage :
- 30V
- Underplate Material :
- Nickel
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 96
- Preloaded :
- yes
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Factory Lead Time :
- 21 Weeks
- Contact Style :
- Press-Fit
- Connector Type :
- Header, Male Pins
- Series :
- Z-PACK Slim UHD
- Number of Rows :
- 8
- Number of Pairs :
- 96
- Row Spacing :
- 1.27 mm
- Length :
- 17.3mm
- Color :
- Natural
- Make First / Break Last :
- No
- Max Operating Temperature :
- 221°C
- Mount :
- Through Hole
- PCB Thickness :
- 1.2mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Circuit Application :
- Signal
- Max Current Rating :
- 500mA
- Data Rate :
- 3.5 Gbps
- Contact Plating :
- Tin
- Pitch :
- 1.45mm
- Length - Tail :
- 1.6mm
- Housing Material :
- Polymer
- Min Operating Temperature :
- -67°C
- Sealable :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 2042139-2
Z-PACK Slim UHD Series Header, Male Pins Press-Fit Natural 96 Positions Pitch: 1.45mm Tray Board Edge, Through Hole, Right Angle
2042139-2 Overview
This product is packaged in a Header, Male Pins box.Board Edge, Through Hole, Right Angle indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the Z-PACK Slim UHD Series.Use it below 221°C.A minimum temperature of -67°C must be maintained for the operation of this device.By Through Hole, the part is mounted.The Backplane Connector is capable of working with a supply voltage of 30V.
2042139-2 Features
Z-PACK Slim UHD series
2042139-2 Applications
There are a lot of TE Connectivity AMP Connectors
2042139-2 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
