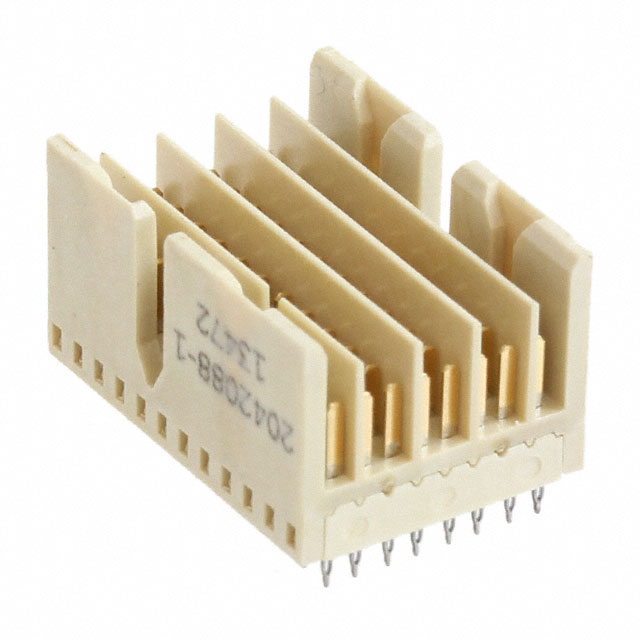

2042088-1
Or copy the link below:
- Mfr.Part #
- 2042088-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 96POS PCB
- Stock
- 3,219
- In Stock ：
- 3,219
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Positions Loaded :
- All
- Length - Tail :
- 1.6mm
- PCB Thickness :
- 1.2mm
- Lead Free :
- Lead Free
- JESD-609 Code :
- e3
- Number of Pairs :
- 96
- Contact Current Rating :
- 500mA
- Number of Rows :
- 8
- Stack Height :
- 1.6mm
- Color :
- Natural
- Operating Temperature :
- -55°C~105°C
- Contact Finish :
- Gold
- Packaging :
- Tray
- Published :
- 2009
- Termination :
- Press-Fit
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 50V
- Preloaded :
- yes
- Total Number of Contacts :
- 96
- Series :
- Z-PACK Slim UHD
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Columns :
- 12
- Circuit Application :
- Signal
- Filter Feature :
- No
- Option :
- GENERAL PURPOSE
- Housing Material :
- Polymer
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Additional Feature :
- POLARIZED
- IEC Conformance :
- No
- Mating Alignment :
- With
- Length :
- 17.3mm
- Hole Diameter :
- 400 µm
- Pitch :
- 1.45mm
- Orientation :
- Vertical
- Pbfree Code :
- yes
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 13 Weeks
- Flammability Rating :
- UL94 V-0
- Body/Shell Style :
- PLUG
- Durability Rating :
- 200 Cycles
- Make First / Break Last :
- No
- Depth :
- 12.51mm
- Row Spacing :
- 1.27 mm
- Underplate Material :
- Nickel
- Mixed Contacts :
- No
- MIL Conformance :
- No
- Number of Signal Positions :
- 192
- Max Current Rating :
- 500mA
- Plating Thickness :
- 2.5μm
- ELV :
- Compliant
- Height :
- 9.4996mm
- Gender :
- Male
- Mount :
- Through Hole
- Impedance :
- 30Ohm
- Connector Type :
- Header, Male Pins
- Current Rating :
- 500mA
- ECCN Code :
- EAR99
- Contact Plating :
- Gold, Tin
- Shrouding :
- Unshrouded
- Width :
- 12.5222mm
- Operating Supply Voltage :
- 30V
- Datasheets
- 2042088-1
Z-PACK Slim UHD Series Header, Male Pins Press-Fit Gold Natural Pitch: 1.45mm -55°C~105°C Tray Through Hole
2042088-1 Overview
Header, Male Pins packaging is included.This device has a mounting type of Through Hole.We package the product with a Tray case.The product is part of the Z-PACK Slim UHD Series.Additionally, there are features like POLARIZED, just to name a few.You've got Through Hole mounted on the part.This device runs at -55°C~105°C operating temperature.A supply voltage of 30V works with this Backplane Connector.
2042088-1 Features
Z-PACK Slim UHD series
2042088-1 Applications
There are a lot of TE Connectivity AMP Connectors
2042088-1 Backplane Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
