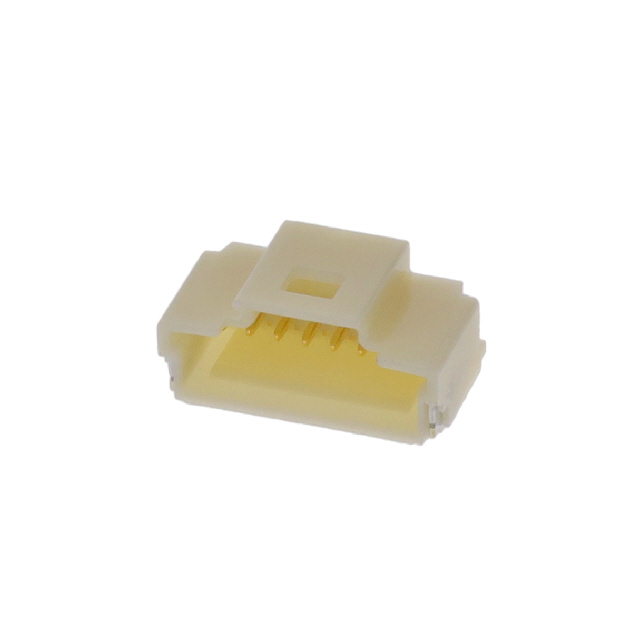

2035580807
Or copy the link below:
- Mfr.Part #
- 2035580807
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 8POS 1MM
- Stock
- 9,143
- In Stock ：
- 9,143
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Shape :
- RECTANGULAR
- Fastening Type :
- Friction Lock
- Mounting Type :
- Surface Mount, Right Angle
- Packaging :
- Tape and Reel (TR)
- Insulation Height :
- 0.185 4.70mm
- Insulation Color :
- Natural
- RoHS Status :
- ROHS3 Compliant
- Contact Type :
- Male Pin
- Insulation Material :
- Polyamide (PA), Nylon
- Number of Positions Loaded :
- All
- Pitch - Mating :
- 0.039 1.00mm
- Factory Lead Time :
- 8 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Board to Cable/Wire
- Feature :
- Pick and Place, Solder Retention
- Contact Finish - Mating :
- Gold
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Number of Rows :
- 1
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Termination :
- Solder
- Contact Finish Thickness - Post :
- 2.00μin 0.051μm
- Shrouding :
- Shrouded - 4 Wall
- Connector Type :
- Header
- Series :
- Pico-Clasp 203558
- Current Rating (Amps) :
- Varies by WireGAuge
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Phosphor Bronze
- Number of Positions :
- 8
- Voltage - Rated :
- 50V
- Operating Temperature :
- -40°C~105°C
- Datasheets
- 2035580807
2035580807 Documents
Pico-Clasp 203558 Series 1-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount, Right Angle Gold Polyamide (PA), Nylon 8-Position Board to Cable/Wire 0.185 4.70mm Height
2035580807 Overview
The product is packaged in Header.This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the Pico-Clasp 203558 Series.The device could be used for the following application: Automotive, General Purpose, Industrial, Medical.There are a number of advantages to its Pick and Place, Solder Retention feature.As a result, the device runs at -40°C~105°C Operating Temperature.
2035580807 Features
Pico-Clasp 203558 series
2035580807 Applications
There are a lot of Molex
2035580807 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
