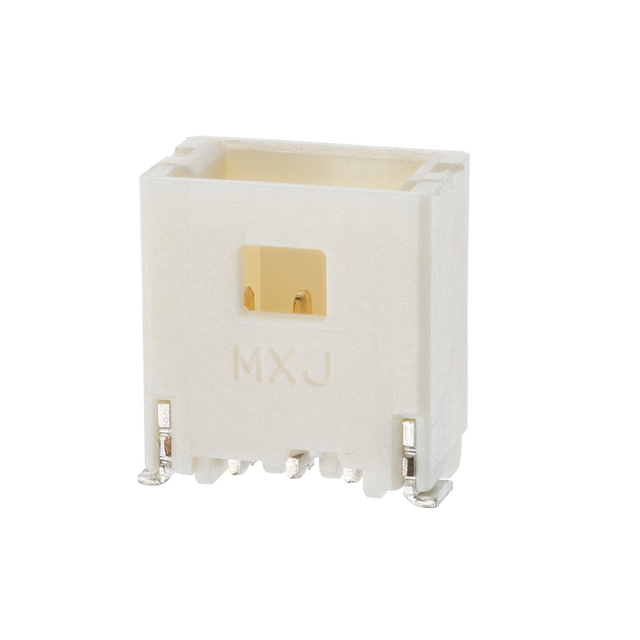

2035560507
Or copy the link below:
- Mfr.Part #
- 2035560507
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 5POS 1MM
- Stock
- 22,440
- In Stock ：
- 22,440
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Board to Cable/Wire
- Contact Shape :
- RECTANGULAR
- Feature :
- Pick and Place, Solder Retention
- Contact Finish Thickness - Post :
- 3.94μin 0.100μm
- Pitch - Mating :
- 0.039 1.00mm
- Voltage - Rated :
- 50V
- Contact Finish - Mating :
- Gold
- Number of Rows :
- 1
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tape and Reel (TR)
- Operating Temperature :
- -40°C~105°C
- Contact Material :
- Phosphor Bronze
- Contact Type :
- Male Pin
- Fastening Type :
- Friction Lock
- Factory Lead Time :
- 15 Weeks
- Number of Positions Loaded :
- All
- Number of Positions :
- 5
- Connector Type :
- Header
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Current Rating (Amps) :
- Varies by WireGAuge
- Insulation Color :
- Natural
- Insulation Material :
- Polyamide (PA), Nylon
- Insulation Height :
- 0.213 5.40mm
- Series :
- Pico-Clasp 203556
- Datasheets
- 2035560507
Pico-Clasp 203556 Series 1-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Polyamide (PA), Nylon 5-Position Board to Cable/Wire 0.213 5.40mm Height
2035560507 Overview
This product is packaged in a Header cartonThis device's mounting type is Surface Mount.It's packaged in a Tape & Reel (TR) case.Pico-Clasp 203556 Series product.Automotive, General Purpose, Industrial, Medical is one possible application.Its Pick and Place, Solder Retention feature makes it more powerful in a number of ways.Running in -40°C~105°C Operating Temperature.
2035560507 Features
Pico-Clasp 203556 series
2035560507 Applications
There are a lot of Molex
2035560507 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
