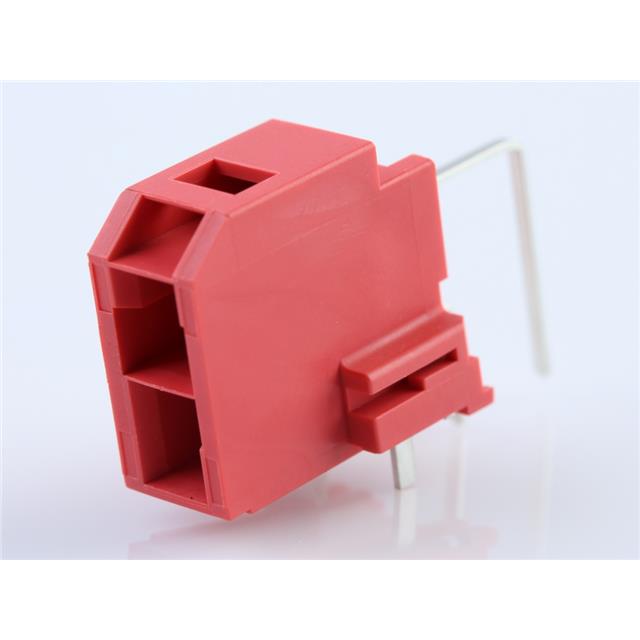

203555-1012
Or copy the link below:
- Mfr.Part #
- 203555-1012
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CP65 WTB HDR RA TH TUBE RED 2CKT
- Stock
- 2,408
- In Stock ：
- 2,408
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 13 Weeks
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish - Mating :
- Tin
- RoHS Status :
- ROHS3 Compliant
- Series :
- CP-6.5 203555
- Contact Shape :
- RECTANGULAR
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions :
- 2
- Number of Positions Loaded :
- All
- Operating Temperature :
- -40°C~105°C
- Connector Type :
- Header
- Voltage - Rated :
- 600VAC/DC
- Feature :
- Board Guide, Solder Retention
- Contact Length - Post :
- 0.150 3.81mm
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- COPPER ALLOY
- Row Spacing - Mating :
- 0.256 (6.50mm)
- Insulation Height :
- 0.598 15.19mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Termination :
- Solder
- Insulation Material :
- Polyamide (PA), Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Latch Holder
- Style :
- Board to Cable/Wire
- Applications :
- General Purpose, Industrial
- Insulation Color :
- Red
- Packaging :
- Tube
- Contact Type :
- Tab
- Datasheets
- 203555-1012
CP-6.5 203555 Series Header Solder Copper Alloy Tube Through Hole, Right Angle Tin Polyamide (PA), Nylon 2-Position Board to Cable/Wire 0.598 15.19mm Height
2035551012 Overview
Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the CP-6.5 203555 Series.There are a variety of possible applications for this device, including General Purpose, Industrial.Several benefits come from the Board Guide, Solder Retention feature.Devices operate at -40°C~105°C operating temperatures.
2035551012 Features
CP-6.5 203555 series
2035551012 Applications
There are a lot of Molex
2035551012 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
