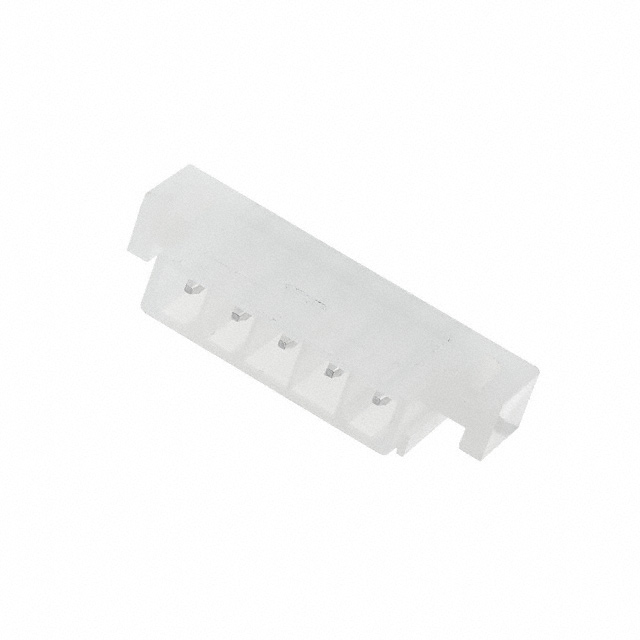

2029152-5
Or copy the link below:
- Mfr.Part #
- 2029152-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 5POS 4.2MM
- Stock
- 8,713
- In Stock ：
- 8,713
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Positions :
- 5
- Width :
- 12.4968mm
- Approval Agency :
- UL
- Number of Contacts :
- 5
- Min Operating Temperature :
- -40°C
- Contact Current Rating :
- 9A
- Insulation Color :
- Natural
- Orientation :
- RIGHT ANGLE
- Feature :
- Board Guide
- Length :
- 22.2mm
- Mating Retention :
- With
- PCB Mount Retention :
- With
- Number of Positions Loaded :
- All
- Fastening Type :
- Locking Ramp
- Current Rating (Amps) :
- 9A
- Style :
- Board to Cable/Wire
- Operating Temperature :
- -40°C~105°C
- PCB Thickness :
- 1.6002mm
- Height :
- 5.4102mm
- Mounting Type :
- Through Hole, Right Angle
- Factory Lead Time :
- 16 Weeks
- Insulation Material :
- Polyamide (PA), Nylon
- Published :
- 2011
- Housing Material :
- Nylon
- Contact Type :
- Male Pin
- Mount :
- Through Hole
- Circuit Application :
- Power
- Contact Plating :
- Tin
- Number of Rows :
- 1
- Contact Finish - Mating :
- Tin
- ELV :
- Compliant
- Insulation Diameter :
- 3.1 mm
- Applications :
- General Purpose, Industrial, Lighting
- Housing Color :
- Natural
- Current Rating :
- 9A
- Contact Length - Post :
- 0.138 3.50mm
- Pitch - Mating :
- 0.165 4.20mm
- Contact Material :
- Brass
- Max Operating Temperature :
- 221°C
- Material Flammability Rating :
- UL94 V-2
- Voltage - Rated :
- 600VAC
- Pitch :
- 4.191mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Shrouding :
- Shrouded - 4 Wall
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Tail :
- 3.5052mm
- Contact Shape :
- Square
- Flammability Rating :
- UL94 V-2
- Sealable :
- No
- Termination :
- Solder
- Packaging :
- Bag
- Connector Type :
- Header
- Operating Supply Voltage :
- 600V
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Finish - Post :
- Tin
- Mating Alignment :
- With
- Series :
- VAL-U-LOK
- Datasheets
- 2029152-5
VAL-U-LOK Series 1-Row Header Solder Brass Bag Through Hole, Right Angle Tin Polyamide (PA), Nylon 5-Position Board to Cable/Wire
2029152-5 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bag case is used.It belongs to the VAL-U-LOK Series of products.It's best to use it when the temperature is below 221°C.This device must operate at a minimum temperature of -40°C.General Purpose, Industrial, Lighting is a possible application for the device.Its Board Guide feature renders it more powerful in many ways.The part is mounted by Through Hole.This memory's operating supply voltage is 600V.The device runs in -40°C~105°C Operating Temperature.
2029152-5 Features
VAL-U-LOK series
2029152-5 Applications
There are a lot of TE Connectivity AMP Connectors
2029152-5 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
