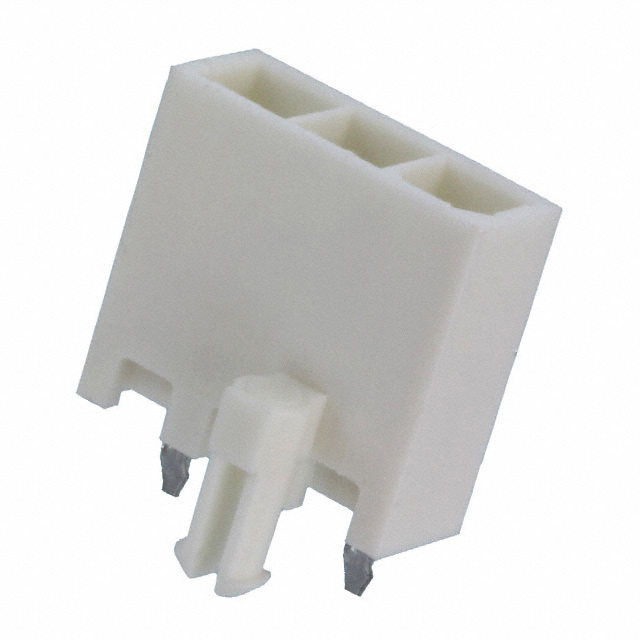

2029113-3
Or copy the link below:
- Mfr.Part #
- 2029113-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 4.2MM
- Stock
- 20,385
- In Stock ：
- 20,385
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Width :
- 9.7282mm
- Voltage - Rated :
- 600VAC
- Empty Shell :
- No
- Fastening Type :
- Locking Ramp
- RoHS Status :
- RoHS Compliant
- Published :
- 2008
- Number of Power Positions :
- 3
- Style :
- Board to Cable/Wire
- Shrouding :
- Shrouded - 4 Wall
- Insulation Height :
- 0.504 12.80mm
- Contact Material :
- Brass
- IEC Conformance :
- No
- Contact Type :
- Male Pin
- Pitch - Mating :
- 0.165 4.20mm
- PCB Thickness :
- 70μm
- Operating Supply Voltage :
- 600V
- Packaging :
- Bulk
- Housing Color :
- White
- Length :
- 13.7922mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 9A
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.138 3.50mm
- DIN Conformance :
- No
- Contact Retention :
- Without
- Sealable :
- No
- Applications :
- General Purpose, Industrial, Lighting
- Housing Material :
- Nylon
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 16 Weeks
- Series :
- VAL-U-LOK
- ELV :
- Compliant
- UL Flammability Code :
- 94V-2
- Operating Temperature :
- -40°C~105°C
- Number of Rows :
- 1
- Filter Feature :
- No
- Termination :
- Solder
- MIL Conformance :
- No
- Connector Type :
- Header
- Circuit Application :
- Power
- Feature :
- Board Lock
- Mount :
- Through Hole
- Number of Positions Loaded :
- All
- Contact Current Rating :
- 9A
- Orientation :
- Vertical
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Insulation Diameter :
- 3.0988 mm
- Mixed Contacts :
- No
- Contact Shape :
- Square
- Flammability Rating :
- UL94 V-0
- Approval Agency :
- CSA
- Pbfree Code :
- yes
- Height :
- 12.8mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Datasheets
- 2029113-3
VAL-U-LOK Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6, Glass Filled Board to Cable/Wire 0.504 12.80mm Height
2029113-3 Overview
Currently, it is packaged in Header.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the VAL-U-LOK Series, it is one of the most popular.The device could be used for General Purpose, Industrial, Lighting.A number of benefits can be derived from the Board Lock feature of this application.Through Hole is the mounting point for the part.There is a note indicating that this memory operates at an 600V volt supply voltage.-40°C~105°C Operating Temperature is used by the device.
2029113-3 Features
VAL-U-LOK series
2029113-3 Applications
There are a lot of TE Connectivity AMP Connectors
2029113-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
