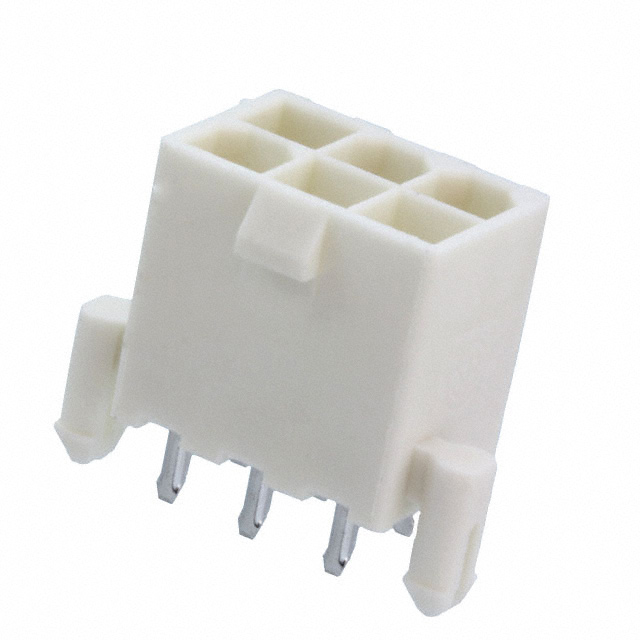

2029059-6
Or copy the link below:
- Mfr.Part #
- 2029059-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 4.2MM
- Stock
- 20,395
- In Stock ：
- 20,395
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Tin
- ELV :
- Compliant
- Max Operating Temperature :
- 221°C
- PCB Thickness :
- 70μm
- Number of Signal Positions :
- 0
- Mount :
- Through Hole
- Contact Length - Post :
- 0.138 3.50mm
- Housing Material :
- Nylon
- Published :
- 2008
- Applications :
- General Purpose, Industrial, Lighting
- Radiation Hardening :
- No
- Min Operating Temperature :
- -40°C
- Number of Positions Loaded :
- All
- Height :
- 12.8mm
- Width :
- 9.75mm
- Sealable :
- No
- Contact Current Rating :
- 9A
- Connector Type :
- Header
- Insulation Height :
- 0.504 12.80mm
- Insulation Color :
- White
- Approval Agency :
- CSA
- Contact Shape :
- Square
- Number of Power Positions :
- 6
- Length :
- 13.7922mm
- Voltage - Rated :
- 600VAC
- Number of Positions :
- 6
- Number of Contacts :
- 6
- Feature :
- Board Lock, Glow Wire Compliant
- Current Rating (Amps) :
- 9A
- VDE Tested :
- No
- Pitch :
- 4.2mm
- Number of Rows :
- 2
- Plating :
- Tin
- Fastening Type :
- Locking Ramp
- Insulation Diameter :
- 3.0988 mm
- Termination :
- Solder
- Flammability Rating :
- UL94 V-0
- Packaging :
- Tray
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Plating :
- Tin
- Pitch - Mating :
- 0.165 4.20mm
- Style :
- Board to Cable/Wire
- Row Spacing - Mating :
- 0.165 (4.20mm)
- PCB Mounting Orientation :
- Vertical
- Mounting Type :
- Through Hole
- Operating Supply Voltage :
- 600V
- Series :
- VAL-U-LOK
- Factory Lead Time :
- 16 Weeks
- Contact Material :
- Brass
- Housing Color :
- White, Natural
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Color :
- White
- Material Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Orientation :
- Vertical
- Current Rating :
- 9A
- RoHS Status :
- RoHS Compliant
- Contact Finish - Post :
- Tin
- Contact Retention :
- Without
- Operating Temperature :
- -40°C~105°C
- Circuit Application :
- Power
- Datasheets
- 2029059-6
VAL-U-LOK Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 6-Position Board to Cable/Wire 0.504 12.80mm Height
2029059-6 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the VAL-U-LOK Series.Use it below 221°C.A minimum temperature of -40°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose, Industrial, Lighting.In many ways, Board Lock, Glow Wire Compliant makes it more powerful.By Through Hole, the part is mounted.The operating voltage of this memory is 600V.Operating temperature is set to -40°C~105°C.
2029059-6 Features
VAL-U-LOK series
2029059-6 Applications
There are a lot of TE Connectivity AMP Connectors
2029059-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
