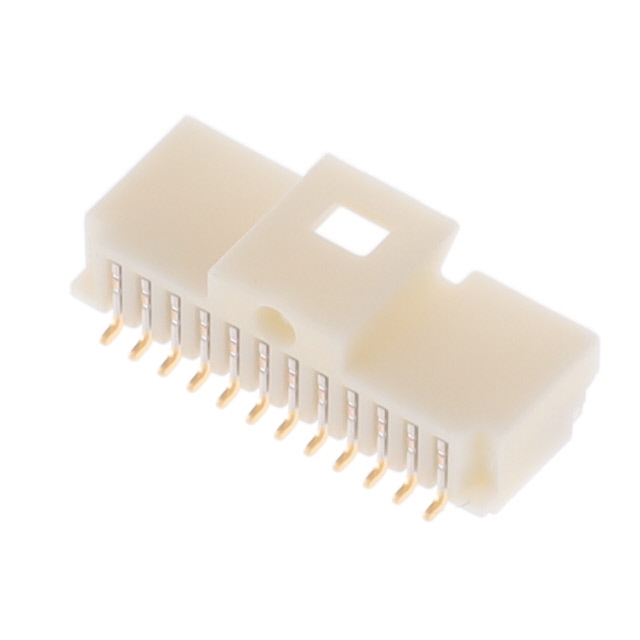

2023961207
Or copy the link below:
- Mfr.Part #
- 2023961207
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 12POS 1MM
- Stock
- 10,461
- In Stock ：
- 10,461
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Feature :
- Solder Retention
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 1
- Insulation Height :
- 0.185 4.70mm
- Connector Type :
- Header
- Pitch - Mating :
- 0.039 1.00mm
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Packaging :
- Tape and Reel (TR)
- Mounting Type :
- Surface Mount, Right Angle
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Insulation Color :
- Natural
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Contact Material :
- Phosphor Bronze
- Number of Positions :
- 12
- Contact Finish - Mating :
- Gold
- Series :
- Pico-Clasp 202396
- Contact Shape :
- Square
- Voltage - Rated :
- 50V
- Contact Type :
- Male Pin
- Factory Lead Time :
- 8 Weeks
- Operating Temperature :
- -40°C~105°C
- Style :
- Board to Cable/Wire
- ECCN Code :
- EAR99
- Current Rating (Amps) :
- Varies by WireGAuge
- RoHS Status :
- ROHS3 Compliant
- Fastening Type :
- Latch Holder
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyamide (PA), Nylon
- HTS Code :
- 8536.69.40.40
- Datasheets
- 2023961207
Pico-Clasp 202396 Series 1-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount, Right Angle Gold Polyamide (PA), Nylon 12-Position Board to Cable/Wire 0.185 4.70mm Height
2023961207 Overview
Packaging is Header.Surface Mount, Right Angle is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the Pico-Clasp 202396 Series, it can be found in this category.A possible application of the device would be Automotive, General Purpose, Industrial, Medical.With its Solder Retention feature, it is more powerful in many ways.The device is operating at -40°C~105°C Operating Temperature.
2023961207 Features
Pico-Clasp 202396 series
2023961207 Applications
There are a lot of Molex
2023961207 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
