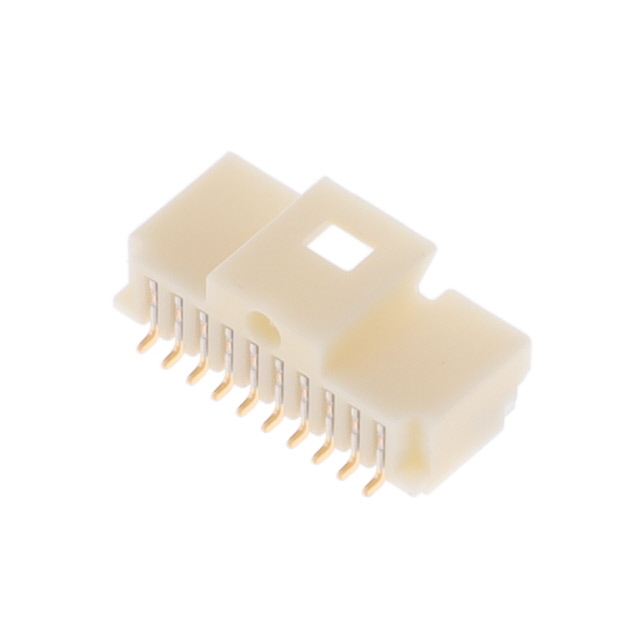

2023961007
Or copy the link below:
- Mfr.Part #
- 2023961007
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 10POS 1MM
- Stock
- 10,811
- In Stock ：
- 10,811
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- HTS Code :
- 8536.69.40.40
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Latch Holder
- Insulation Color :
- Natural
- Mounting Type :
- Surface Mount, Right Angle
- Insulation Height :
- 0.185 4.70mm
- Factory Lead Time :
- 8 Weeks
- Current Rating (Amps) :
- Varies by WireGAuge
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Mating :
- Gold
- Pitch - Mating :
- 0.039 1.00mm
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 1
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Voltage - Rated :
- 50V
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tape and Reel (TR)
- Operating Temperature :
- -40°C~105°C
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Connector Type :
- Header
- Number of Positions Loaded :
- All
- Series :
- Pico-Clasp 202396
- ECCN Code :
- EAR99
- Contact Shape :
- Square
- Termination :
- Solder
- Feature :
- Solder Retention
- Style :
- Board to Cable/Wire
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Contact Material :
- Phosphor Bronze
- Number of Positions :
- 10
- Contact Type :
- Male Pin
- Datasheets
- 2023961007
2023961007 Documents
Pico-Clasp 202396 Series 1-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount, Right Angle Gold Polyamide (PA), Nylon 10-Position Board to Cable/Wire 0.185 4.70mm Height
2023961007 Overview
This product is packaged in a Header box.Surface Mount, Right Angle indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the Pico-Clasp 202396 Series.There is the possibility of using the device for Automotive, General Purpose, Industrial, Medical.In many ways, Solder Retention makes it more powerful.Operating temperature is set to -40°C~105°C.
2023961007 Features
Pico-Clasp 202396 series
2023961007 Applications
There are a lot of Molex
2023961007 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
