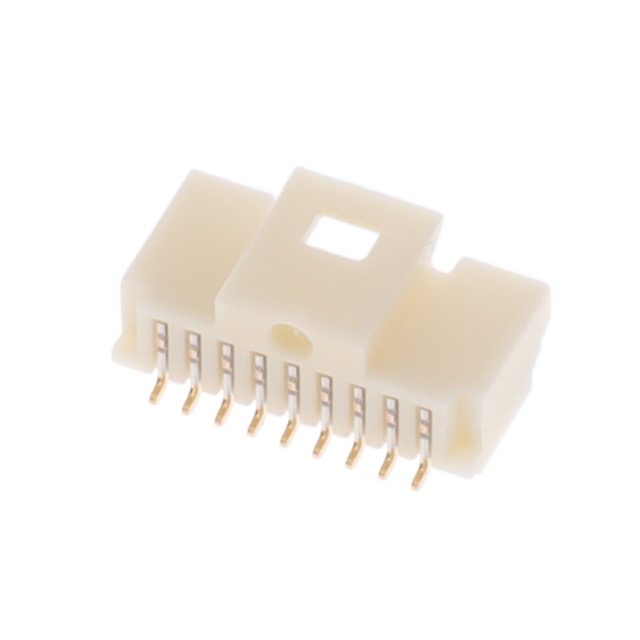

2023960907
Or copy the link below:
- Mfr.Part #
- 2023960907
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 9POS 1MM
- Stock
- 20,886
- In Stock ：
- 20,886
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Feature :
- Solder Retention
- Operating Temperature :
- -40°C~105°C
- Current Rating (Amps) :
- Varies by WireGAuge
- Insulation Color :
- Natural
- Factory Lead Time :
- 8 Weeks
- Insulation Height :
- 0.185 4.70mm
- Contact Material :
- Phosphor Bronze
- Pitch - Mating :
- 0.039 1.00mm
- Termination :
- Solder
- Packaging :
- Tape and Reel (TR)
- Contact Finish - Mating :
- Gold
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Fastening Type :
- Latch Holder
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 1
- Number of Positions :
- 9
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Contact Shape :
- Square
- Connector Type :
- Header
- Voltage - Rated :
- 50V
- Insulation Material :
- Polyamide (PA), Nylon
- Series :
- Pico-Clasp 202396
- Style :
- Board to Cable/Wire
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- Mounting Type :
- Surface Mount, Right Angle
- Datasheets
- 2023960907
Pico-Clasp 202396 Series 1-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount, Right Angle Gold Polyamide (PA), Nylon 9-Position Board to Cable/Wire 0.185 4.70mm Height
2023960907 Overview
A Header package is included with it.Its mounting type is Surface Mount, Right Angle.Packaging is performed using a Tape & Reel (TR) case.It is part of the Pico-Clasp 202396 Series of products.It is possible for the device to be used for the application Automotive, General Purpose, Industrial, Medical.A number of features make it more powerful because of its Solder Retention feature.There is no operating temperature for the device.
2023960907 Features
Pico-Clasp 202396 series
2023960907 Applications
There are a lot of Molex
2023960907 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
