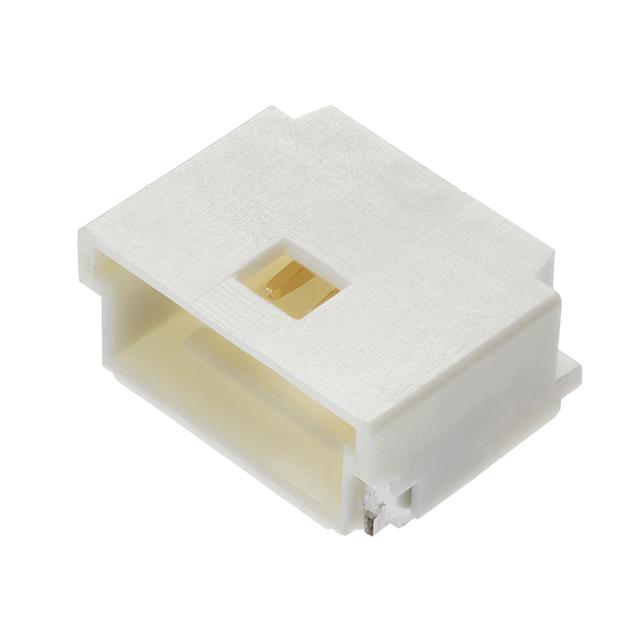

2023960407
Or copy the link below:
- Mfr.Part #
- 2023960407
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 4POS 1MM
- Stock
- 15,331
- In Stock ：
- 15,331
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Polyamide (PA), Nylon
- Termination :
- Solder
- Connector Type :
- Header
- Insulation Color :
- Natural
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Contact Type :
- Male Pin
- ECCN Code :
- EAR99
- Number of Positions :
- 4
- Packaging :
- Tape and Reel (TR)
- Series :
- Pico-Clasp 202396
- Shrouding :
- Shrouded - 4 Wall
- Mounting Type :
- Surface Mount, Right Angle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.126 3.20mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Fastening Type :
- Latch Holder
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Style :
- Board to Cable/Wire
- Pitch - Mating :
- 0.039 1.00mm
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 13 Weeks
- Number of Positions Loaded :
- All
- Operating Temperature :
- -40°C~105°C
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 1
- Contact Finish - Mating :
- Gold
- Voltage - Rated :
- 50V
- Feature :
- Solder Retention
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Contact Shape :
- Square
- Datasheets
- 2023960407
Pico-Clasp 202396 Series 1-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount, Right Angle Gold Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.126 3.20mm Height
2023960407 Overview
The packaging contains Header.There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number Pico-Clasp 202396 belongs to the Pico-Clasp 202396 Series.In addition to Automotive, General Purpose, Industrial, Medical, there are other possible applications for the device.In many ways, it is more powerful due to its Solder Retention feature.This device operates at a temperature of -40°C~105°C.
2023960407 Features
Pico-Clasp 202396 series
2023960407 Applications
There are a lot of Molex
2023960407 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
