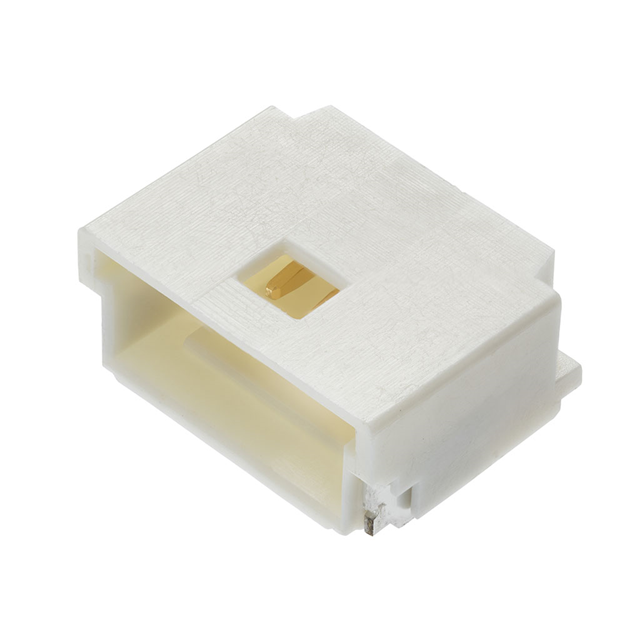

2023960307
Or copy the link below:
- Mfr.Part #
- 2023960307
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 3POS 1MM
- Stock
- 22,990
- In Stock ：
- 22,990
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Mounting Type :
- Surface Mount, Right Angle
- Connector Type :
- Header
- Number of Rows :
- 1
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Fastening Type :
- Latch Holder
- Factory Lead Time :
- 8 Weeks
- Operating Temperature :
- -40°C~105°C
- Shrouding :
- Shrouded - 4 Wall
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Feature :
- Solder Retention
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- ROHS3 Compliant
- Contact Type :
- Male Pin
- Insulation Height :
- 0.126 3.20mm
- Number of Positions :
- 3
- Voltage - Rated :
- 50V
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Insulation Material :
- Polyamide (PA), Nylon
- Insulation Color :
- Natural
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Series :
- Pico-Clasp 202396
- Style :
- Board to Cable/Wire
- Current Rating (Amps) :
- Varies by WireGAuge
- Pitch - Mating :
- 0.039 1.00mm
- Contact Shape :
- Square
- Datasheets
- 2023960307
Pico-Clasp 202396 Series 1-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount, Right Angle Gold Polyamide (PA), Nylon 3-Position Board to Cable/Wire 0.126 3.20mm Height
2023960307 Overview
The packaging contains Header.There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number Pico-Clasp 202396 belongs to the Pico-Clasp 202396 Series.In addition to Automotive, General Purpose, Industrial, Medical, there are other possible applications for the device.In many ways, it is more powerful due to its Solder Retention feature.This device operates at a temperature of -40°C~105°C.
2023960307 Features
Pico-Clasp 202396 series
2023960307 Applications
There are a lot of Molex
2023960307 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
