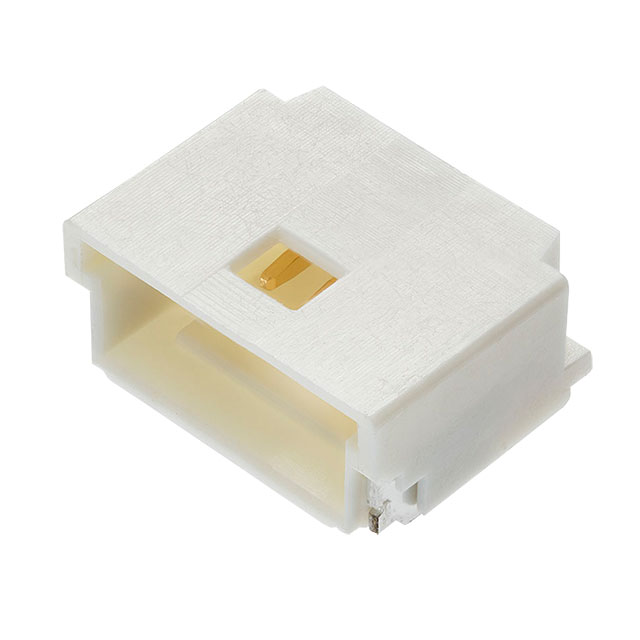

2023960207
Or copy the link below:
- Mfr.Part #
- 2023960207
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 2POS 1MM
- Stock
- 10,880
- In Stock ：
- 10,880
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Style :
- Board to Cable/Wire
- Material Flammability Rating :
- UL94 V-0
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Total Number of Contacts :
- 2
- Contact Shape :
- Square
- Connector Type :
- Header
- Contact Material :
- Phosphor Bronze
- Number of Rows :
- 1
- MIL Conformance :
- No
- Series :
- Pico-Clasp 202396
- Pitch - Mating :
- 0.039 1.00mm
- Insulation Height :
- 0.126 3.20mm
- RoHS Status :
- ROHS3 Compliant
- Filter Feature :
- No
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Positions :
- 2
- Fastening Type :
- Latch Holder
- IEC Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- ECCN Code :
- EAR99
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Mating :
- Gold
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Insulation Color :
- Natural
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- DIN Conformance :
- No
- HTS Code :
- 8536.69.40.40
- Contact Type :
- Male Pin
- Feature :
- Solder Retention
- Packaging :
- Tape and Reel (TR)
- Mixed Contacts :
- No
- Operating Temperature :
- -40°C~105°C
- Mounting Type :
- Surface Mount, Right Angle
- Factory Lead Time :
- 8 Weeks
- Additional Feature :
- PICO-CLASP, POLARIZED
- Insulation Material :
- Polyamide (PA), Nylon
- Voltage - Rated :
- 50V
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Datasheets
- 2023960207
2023960207 Documents
Pico-Clasp 202396 Series 1-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount, Right Angle Gold Polyamide (PA), Nylon 2-Position Board to Cable/Wire 0.126 3.20mm Height
2023960207 Overview
Packaging is in the form of Header.This device has a Surface Mount, Right Angle mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the Pico-Clasp 202396 Series.Other features include PICO-CLASP, POLARIZED, to name just a few.There are a variety of possible applications for this device, including Automotive, General Purpose, Industrial, Medical.Several benefits come from the Solder Retention feature.Devices operate at -40°C~105°C operating temperatures.
2023960207 Features
Pico-Clasp 202396 series
2023960207 Applications
There are a lot of Molex
2023960207 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
