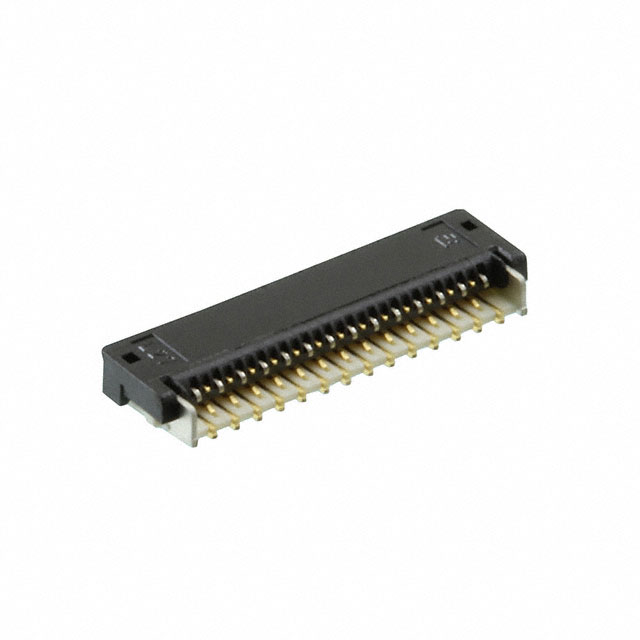

2013496-9
Or copy the link below:
- Mfr.Part #
- 2013496-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- EMBOSS TAPING 0.3FPC NARROW BF
- Stock
- 1,017
- In Stock ：
- 1,017
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Gender :
- FEMALE
- Wire/Cable Type :
- Flat Flex
- Housing Color :
- Natural
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Factory Lead Time :
- 29 Weeks
- Mount :
- Surface Mount
- Packaging :
- Tape and Reel (TR)
- Height :
- 1.2mm
- Flammability Rating :
- UL94 V-0
- Length :
- 9.9mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Locking Feature :
- Flip Lock
- Orientation :
- RIGHT ANGLE
- Contact Current Rating :
- 200mA
- Flat Flex Type :
- FPC
- Height Above Board :
- 0.047 1.20mm
- Current Rating (Amps) :
- 0.2A
- Cable End Type :
- Tapered
- Actuator Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ELV :
- Compliant
- Material Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 27
- FFC, FCB Thickness :
- 0.20mm
- Published :
- 2001
- Number of Positions :
- 27
- Mounting Type :
- Surface Mount, Right Angle
- Contact Finish :
- Gold
- Min Operating Temperature :
- -25°C
- Contact Plating :
- Gold
- Connector Type :
- Connector, Receptacle, Socket
- RoHS Status :
- RoHS Compliant
- Width :
- 2.9mm
- Actuator Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Shielding :
- Unshielded
- Contact Material :
- COPPER ALLOY
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Max Operating Temperature :
- 85°C
- Radiation Hardening :
- No
- Termination :
- Solder
- Connector/Contact Type :
- Contacts, Bottom
- Voltage - Rated :
- 50V
- Pitch :
- 0.012 0.30mm
- Plating Thickness :
- 100 nm
- Number of Rows :
- 1
- Color :
- Black
- Operating Temperature :
- -25°C~85°C
- Contact Location :
- BOTTOM
- Length - Tail :
- 600μm
- Datasheets
- 2013496-9
2013496-9 Documents
FPC Contacts, Bottom Tape & Reel (TR) 0.012 0.30mm Solder 27 Positions Surface Mount, Right Angle Gold -25°C~85°C 0.2A
2013496-9 Overview
It comes in Connector, Receptacle, Socket packaging.There is a mounting type of Surface Mount, Right Angle for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.You should use it when it's below 85°C.A minimum temperature of -25°C is required for the operation of this device.In many ways, its Solder Retention, Zero Insertion Force (ZIF) feature makes it more powerful.Surface Mount is used to mount the part.In this case, the device operates at -25°C~85°C Operating Temperature.
2013496-9 Features
2013496-9 Applications
There are a lot of TE Connectivity AMP Connectors
2013496-9 FFC, FPC (Flat Flexible) Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
