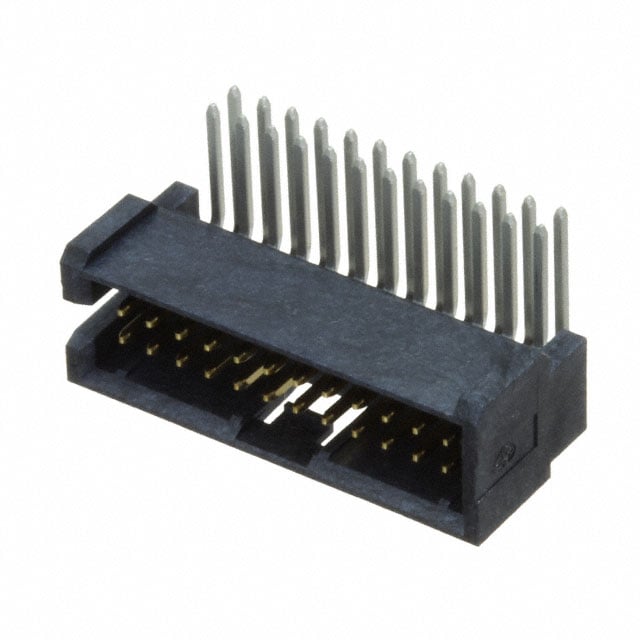

2010212024
Or copy the link below:
- Mfr.Part #
- 2010212024
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 24POS 1.27MM
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Material :
- COPPER ALLOY
- RoHS Status :
- ROHS3 Compliant
- Published :
- 2016
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 2
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Insulation Height :
- 0.213 5.40mm
- Number of Positions :
- 24
- ECCN Code :
- EAR99
- Contact Type :
- Male Pin
- Mounting Type :
- Through Hole, Right Angle
- Style :
- Board to Board
- Contact Length - Mating :
- 0.120 3.05mm
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Applications :
- Automotive, General Purpose, Telecommunications
- Insulation Color :
- Black
- Packaging :
- Tube
- Pitch - Mating :
- 0.050 1.27mm
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Pbfree Code :
- yes
- Contact Finish Thickness - Mating :
- 2.00μin 0.051μm
- Number of Positions Loaded :
- All
- Connector Type :
- Header
- Contact Finish - Mating :
- Gold
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Fastening Type :
- Latch Holder
- Voltage - Rated :
- 125V
- Contact Shape :
- Square
- Factory Lead Time :
- 16 Weeks
- Contact Length - Post :
- 0.118 3.00mm
- Series :
- Slim-Grid 201021
- Operating Temperature :
- -55°C~105°C
- HTS Code :
- 8536.69.40.40
- Datasheets
- 2010212024
Slim-Grid 201021 Series 2-Row Header Solder Copper Alloy Tube Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP), Glass Filled 24-Position Board to Board 0.213 5.40mm Height
2010212024 Overview
Header packaging is included.This device has a mounting type of Through Hole, Right Angle.We package the product with a Tube case.The product is part of the Slim-Grid 201021 Series.You can use it for Automotive, General Purpose, Telecommunications.This device runs at -55°C~105°C operating temperature.
2010212024 Features
Slim-Grid 201021 series
2010212024 Applications
There are a lot of Molex
2010212024 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
