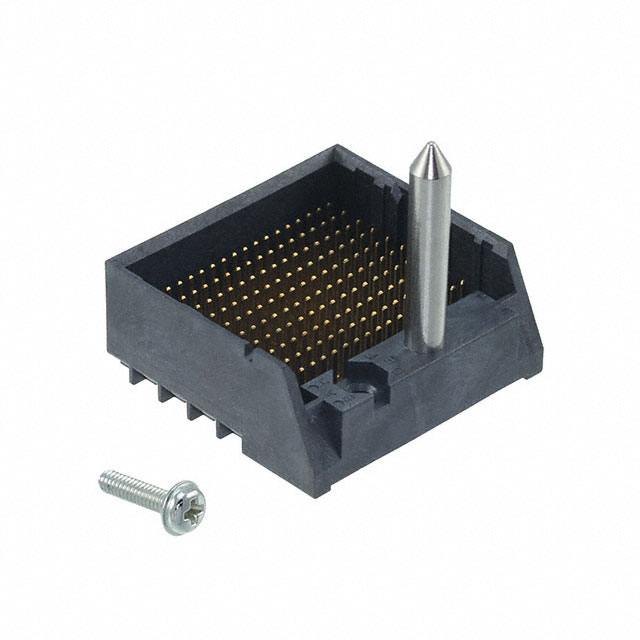

2007875-2
Or copy the link below:
- Mfr.Part #
- 2007875-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 180POS PCB
- Stock
- 30,119
- In Stock ：
- 30,119
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Underplate Material :
- Nickel
- Contact Current Rating :
- 750mA
- Plating Thickness :
- 760 nm
- Factory Lead Time :
- 16 Weeks
- Width :
- 28.9mm
- RoHS Status :
- RoHS Compliant
- Make First / Break Last :
- No
- Color :
- Black
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Published :
- 2012
- Material Flammability Rating :
- UL94 V-0
- Circuit Application :
- Signal
- PCB Mounting Orientation :
- Vertical
- Number of Positions :
- 180
- Operating Temperature :
- -55°C~ 85°C
- Shrouding :
- Fully Shrouded
- Differential Signaling :
- yes
- Packaging :
- Tube
- Number of Columns :
- 10
- Connector Style :
- Impact, Guide Left
- Number of Positions Loaded :
- All
- Row Spacing :
- 1.35 mm
- Length :
- 26.9mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Number of Ground Positions :
- 60
- Connector Type :
- Header, Male Pins
- Operating Supply Voltage :
- 30V
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Contact Finish :
- Gold
- Number of Signal Positions :
- 120
- PCB Thickness :
- 1mm
- Differential Pairs per Column :
- 6
- ELV :
- Compliant
- Contact Plating :
- Gold, Tin
- Termination :
- Press-Fit
- Current Rating :
- 750mA
- Height :
- 28.6mm
- Number of Rows :
- 18
- Mount :
- Through Hole
- Length - Tail :
- 1.4mm
- Mating Alignment :
- With
- Hole Diameter :
- 381 µm
- Impedance :
- 100Ohm
- Pitch :
- 1.905mm
- ECCN Code :
- EAR99
- Max Current Rating :
- 750mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- Impact
- Current Rating (Amps) :
- 0.75A
- Data Rate :
- 25 Gbps
- Housing Material :
- Polymer
- Datasheets
- 2007875-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 180 Positions Pitch: 1.905mm -55°C~ 85°C Tube Through Hole
2007875-2 Overview
This product is packaged in a Header, Male Pins carton.Through Hole is the mounting type for the device.The product is packaged in a Tube case.It's part of the Impact Series.Mounting of the part is based on Through Hole.It runs at -55°C~ 85°C Operating Temperature.If the supply voltage is 30V, this Backplane Connector will function.
2007875-2 Features
Impact series
2007875-2 Applications
There are a lot of TE Connectivity AMP Connectors
2007875-2 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
