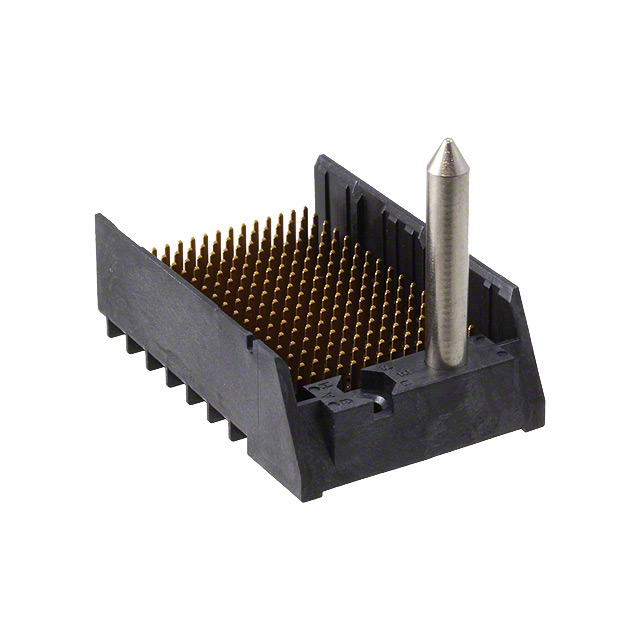

2007857-2
Or copy the link below:
- Mfr.Part #
- 2007857-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 240POS PCB
- Stock
- 42,706
- In Stock ：
- 42,706
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Plating :
- Gold, Tin
- Number of Rows :
- 15
- Shrouding :
- Partially Shrouded
- Contact Finish :
- Gold
- Contact Resistance :
- 10MOhm
- Length - Tail :
- 1.4mm
- Mount :
- Through Hole
- Contact Pattern :
- RECTANGULAR
- Mounting Type :
- Through Hole
- Insertion Force-Max :
- .3336 N
- Stack Height :
- 11.95mm
- Series :
- Impact
- PCB Contact Pattern :
- RECTANGULAR
- Packaging :
- Tube
- Factory Lead Time :
- 19 Weeks
- Reliability :
- COMMERCIAL
- Number of Columns :
- 16
- Number of Positions :
- 240
- Data Rate :
- 25 Gbps
- Height :
- 28.6mm
- Connector Style :
- Impact, Guide Left
- Length :
- 36.9mm
- Termination :
- Press-Fit
- Differential Pairs per Column :
- 5
- Current Rating :
- 750mA
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Body Depth :
- 0.47 inch
- RoHS Status :
- RoHS Compliant
- Pitch :
- 0.075 1.91mm
- Flammability Rating :
- UL94 V-0
- Durability :
- 200 Cycles
- Differential Signaling :
- yes
- Body Breadth :
- 0.976 inch
- PCB Thickness :
- 1mm
- Number of Positions Loaded :
- All
- Withdrawl Force-Min :
- .14734 N
- Mating Alignment :
- With
- Reference Standard :
- UL, CSA
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Insulation Resistance :
- 1000000000Ohm
- Published :
- 2012
- Housing Material :
- Polymer
- Orientation :
- Vertical
- Width :
- 24.7904mm
- Contact Current Rating :
- 750mA
- Plating Thickness :
- 1.27μm
- Hole Diameter :
- 381 µm
- Max Current Rating :
- 750mA
- Operating Temperature :
- -55°C~ 85°C
- Total Number of Contacts :
- 240
- Operating Supply Voltage :
- 30V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Circuit Application :
- Signal
- Make First / Break Last :
- No
- ELV :
- Compliant
- Connector Type :
- Header, Male Pins
- Underplate Material :
- Nickel
- Number of Conductors :
- ONE
- Number of Signal Positions :
- 160
- Number of Ground Positions :
- 80
- Number Of PCB Rows :
- 15
- Polarization Key :
- POLARIZED HOUSING
- Impedance :
- 100Ohm
- Color :
- Black
- Row Spacing :
- 1.35 mm
- Datasheets
- 2007857-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 240 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Through Hole
2007857-2 Overview
This product is packaged in a Header, Male Pins carton.Through Hole is the mounting type for the device.The product is packaged in a Tube case.It's part of the Impact Series.Mounting of the part is based on Through Hole.It runs at -55°C~ 85°C Operating Temperature.If the supply voltage is 30V, this Backplane Connector will function.
2007857-2 Features
Impact series
2007857-2 Applications
There are a lot of TE Connectivity AMP Connectors
2007857-2 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
