2007838-1
Or copy the link below:
- Mfr.Part #
- 2007838-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- IMP100S,H,V4P16C,UG,DEW39,4.5
- Stock
- 30
- In Stock ：
- 30
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- ELV :
- Compliant
- Series :
- Impact
- Housing Material :
- Polymer
- Number of Positions :
- 192
- Circuit Application :
- Signal
- Gender :
- Male
- REACH SVHC :
- Unknown
- Plating Thickness :
- 1.52μm
- Number of Signal Positions :
- 128
- Height :
- 11.95mm
- Length :
- 33.0962mm
- Operating Temperature :
- -55°C~ 85°C
- Max Current Rating :
- 750mA
- Differential Signaling :
- yes
- Underplate Material :
- Nickel
- Number of Positions Loaded :
- All
- RoHS Status :
- RoHS Compliant
- Current Rating (Amps) :
- 0.75A
- Published :
- 2011
- Max Operating Temperature :
- 185°C
- Shrouding :
- Fully Shrouded
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Row Spacing :
- 1.35 mm
- Orientation :
- Vertical
- Width :
- 20.8026mm
- Mounting Type :
- Through Hole
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Rows :
- 12
- Stack Height :
- 11.95mm
- Max Voltage Rating (AC) :
- 120V
- Termination :
- Press-Fit
- Housing Color :
- Black
- Color :
- Black
- Number of Pairs :
- 64
- Pitch :
- 0.075 1.91mm
- Make First / Break Last :
- No
- Packaging :
- Bulk
- Contact Current Rating :
- 750mA
- Material Flammability Rating :
- UL94 V-0
- Contact Style :
- Press-Fit
- Operating Supply Voltage :
- 30V
- Contact Material :
- Copper
- Impedance :
- 100Ohm
- Mount :
- Through Hole
- Connector Type :
- Header, Male Pins
- Voltage - Rated :
- 30V
- PCB Thickness :
- 1mm
- Contact Plating :
- Gold, Tin
- Stackable :
- No
- Depth :
- 20.8mm
- Mating Alignment :
- With
- Number of Contacts :
- 192
- Data Rate :
- 25 Gbps
- Hole Diameter :
- 381 µm
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 19 Weeks
- PCB Mounting Orientation :
- Vertical
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Current Rating :
- 750mA
- Length - Tail :
- 1.4mm
- Number of Ground Positions :
- 64
- Contact Layout, Typical :
- 128 Signal, 64 Ground
- Contact Finish :
- Gold
- Differential Pairs per Column :
- 4
- Sealable :
- No
- Min Operating Temperature :
- -67°C
- Connector Style :
- Impact
- Number of Columns :
- 16
- Datasheets
- 2007838-1

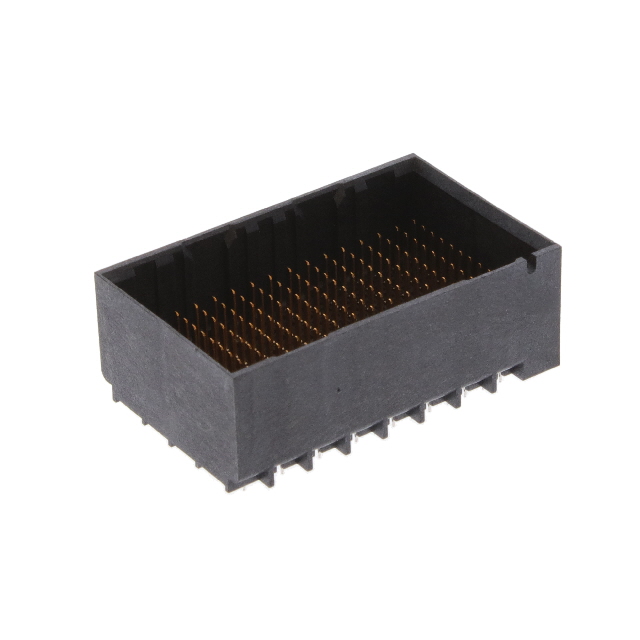

Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 192 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2007838-1 Overview
The packaging contains Header, Male Pins.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Impact belongs to the Impact Series.Whenever the temperature is below 185°C, it's best.There is a minimum temperature requirement of [0°C] for this device.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~ 85°C.When the supply voltage is set to 30V, this Backplane Connector will work.
2007838-1 Features
Impact series
2007838-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007838-1 Backplane Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
