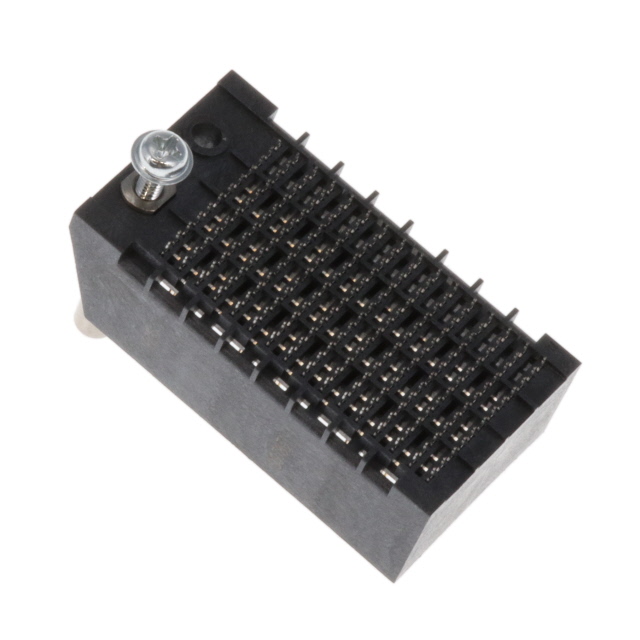

2007831-1
Or copy the link below:
- Mfr.Part #
- 2007831-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- IMP100S,H,V4P16C,RG,LEW39,4.5
- Stock
- 78
- In Stock ：
- 78
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- PCB Contact Pattern :
- RECTANGULAR
- Number of Rows :
- 12
- Housing Color :
- Black
- Insulation Resistance :
- 1000000000Ohm
- Number of Signal Positions :
- 128
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Number Of PCB Rows :
- 12
- REACH SVHC :
- Unknown
- Row Spacing :
- 1.35 mm
- Contact Material :
- Copper
- Contact Style :
- Press-Fit
- Current Rating :
- 750mA
- Insertion Force-Max :
- .3336 N
- Underplate Material :
- Nickel
- Number of Contacts :
- 192
- Contact Plating :
- Gold, Tin
- Withdrawl Force-Min :
- .139 N
- Depth :
- 20.8mm
- Housing Material :
- Polymer
- Termination :
- Press-Fit, Solder
- Max Current Rating :
- 750mA
- Number of Ground Positions :
- 64
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Pattern :
- RECTANGULAR
- Data Rate :
- 25 Gbps
- Shrouding :
- Fully Shrouded
- Length :
- 38.3032mm
- Reliability :
- COMMERCIAL
- ELV :
- Compliant
- Height :
- 24.6126mm
- Factory Lead Time :
- 19 Weeks
- Plating Thickness :
- 1.27μm
- Connector Type :
- PLUG
- Hole Diameter :
- 381 µm
- Differential Pairs per Column :
- 4
- Width :
- 20.8026mm
- Rated Current (Signal) :
- 0.75A
- Pitch :
- 1.9mm
- Circuit Application :
- Signal
- Max Operating Temperature :
- 185°C
- Orientation :
- Vertical
- ECCN Code :
- EAR99
- Dielectric Withstanding Voltage :
- 500VAC V
- Min Operating Temperature :
- -67°C
- Polarization Key :
- POLARIZED HOUSING
- Number of Conductors :
- ONE
- Contact Resistance :
- 10MOhm
- Body Breadth :
- 0.819 inch
- Impedance :
- 100Ohm
- Length - Tail :
- 1.4mm
- Stack Height :
- 11.95mm
- Published :
- 2011
- Differential Signaling :
- yes
- Packaging :
- Bulk
- Mating Alignment :
- With
- Operating Supply Voltage :
- 30V
- Make First / Break Last :
- No
- Reference Standard :
- UL, CSA
- Contact Current Rating :
- 750mA
- Max Voltage Rating (AC) :
- 120V
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Number of Columns :
- 16
- Flammability Rating :
- UL94 V-0
- PCB Thickness :
- 1mm
- Gender :
- Male
- Datasheets
- 2007831-1
Plug Press-Fit, Solder Pitch: 1.9mm Bulk
2007831-1 Overview
It comes in Plug packaging.In order to package the product, a Bulk case is used.It's best to use it when the temperature is below 185°C.This device must operate at a minimum temperature of -67°C.The part is mounted by Through Hole.With a supply voltage of 30V, this Backplane Connector works.
2007831-1 Features
2007831-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007831-1 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
