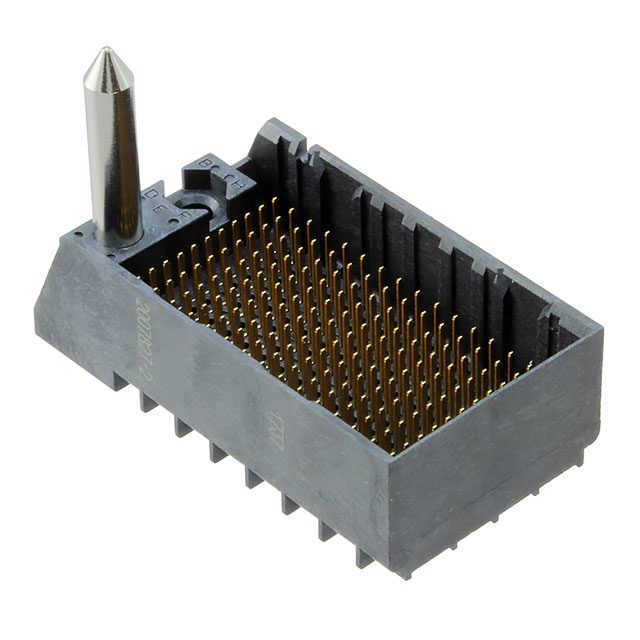

2007827-2
Or copy the link below:
- Mfr.Part #
- 2007827-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- IMP100S,H,V4P16C,LG,REW39,4.9
- Stock
- 17,986
- In Stock ：
- 17,986
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Termination :
- Press-Fit
- Min Operating Temperature :
- -67 °C
- PCB Contact Pattern :
- RECTANGULAR
- Differential Pairs per Column :
- 4
- Product Type :
- High Speed / Modular Connectors
- Mating Contact Pitch :
- 0.075 inch
- PCB Thickness :
- 1 mm
- Withdrawl Force-Min :
- .14734 N
- Impedance :
- 100 Ω
- Max Operating Temperature :
- 185 °C
- Number of Contacts :
- 192
- Number of Positions :
- 192
- Housing Color :
- Black
- Sealable :
- No
- Insulator Color :
- Black
- Connector Type :
- BOARD CONNECTOR
- Mounting Option 2 :
- LOCKING
- Number of Columns :
- 16
- Terminal Length :
- 0.055 inch
- Body Breadth :
- 0.819 inch
- Contact Style :
- Press-Fit
- Row Spacing :
- 1.35 mm
- Data Rate :
- 25 Gbps
- Termination Type :
- Press Fit
- Operating Supply Voltage :
- 30 V
- Durability :
- 500 Cycles
- Current Rating :
- 750 mA
- Stackable :
- No
- Terminal Pitch :
- 1.905 mm
- Number of Pairs :
- 64
- Underplate Material :
- Nickel
- RoHS :
- Details
- PCB Mounting Orientation :
- Vertical
- Dielectric Withstanding Voltage :
- 500VAC V
- Number of Rows :
- 12
- Max Current Rating :
- 750 mA
- Mounting Type :
- BOARD
- Number of Ground Positions :
- 64
- Contact Material :
- NOT SPECIFIED
- Body Depth :
- 0.47 inch
- Contact Pattern :
- RECTANGULAR
- Number Of PCB Rows :
- 12
- Make First / Break Last :
- No
- Hole Diameter :
- 381 µm
- Reference Standard :
- UL, CSA
- Mounting Style :
- Straight
- Factory Lead Time :
- 20 Weeks, 5 Days
- Shrouded :
- Fully Shrouded
- Circuit Application :
- Signal
- Length :
- 38.3032 mm
- Flammability Rating :
- UL94 V-0
- Contact Gender :
- Male
- Insulation Resistance :
- 1000000000 Ω
- Polarization Key :
- POLARIZED HOUSING
- Stack Height :
- 11.95 mm
- Brand :
- TE Connectivity
- Housing Material :
- Polymer
- Contact Plating :
- Gold, Tin
- Number of Signal Positions :
- 128
- Mating Alignment :
- With
- Insertion Force-Max :
- .3336 N
- Lifecycle Status :
- Production (Last Updated: 6 days ago)
- Mounting Option 1 :
- Guide Pin
- Plating Thickness :
- 30u inch
- Product Category :
- High Speed / Modular Connectors
- Pitch :
- 1.905 mm
- Tail Length :
- 1.4 mm
- Mating Contact Row Spacing :
- 0.053 inch
- Brand Name :
- TE Connectivity
- Width :
- 20.8026 mm
- Height :
- 24.6126 mm
- Orientation :
- Vertical
- Differential Signaling :
- yes
- Reach Compliance Code :
- Compliant
- Contact Current Rating :
- 750 mA
- Contact Resistance :
- 10 MΩ
- Rated Current (Signal) :
- 0.75 A
- Reliability :
- COMMERCIAL
- PCB Contact Row Spacing :
- 1.3462 mm
- Total Number of Contacts :
- 192
