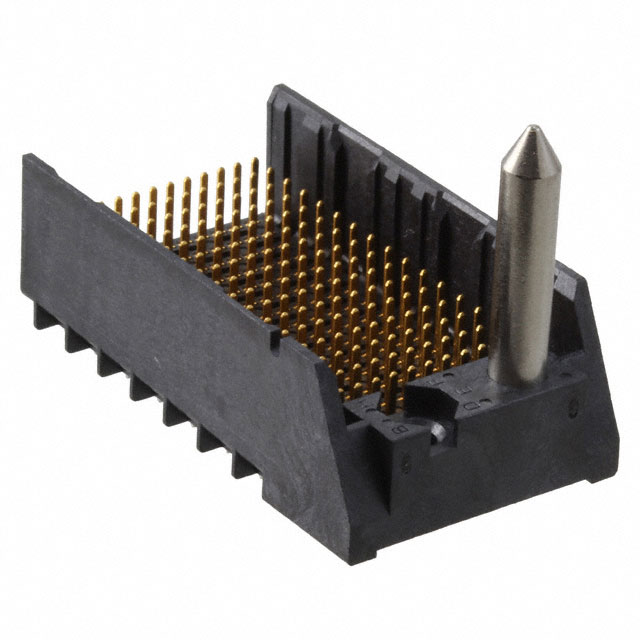

2007825-1
Or copy the link below:
- Mfr.Part #
- 2007825-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 192POS PCB
- Stock
- 706
- In Stock ：
- 706
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Shrouding :
- Partially Shrouded
- REACH SVHC :
- Unknown
- Connector Type :
- Header, Male Pins
- Insertion Force-Max :
- .3336 N
- Pitch :
- 0.075 1.91mm
- PCB Thickness :
- 1mm
- Number of Conductors :
- ONE
- Contact Layout, Typical :
- 128 Signal, 64 Power
- Differential Signaling :
- yes
- Contact Pattern :
- RECTANGULAR
- Contact Plating :
- Gold, Tin
- Data Rate :
- 25 Gbps
- Current Rating :
- 750mA
- Hole Diameter :
- 381 µm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Contact Current Rating :
- 750mA
- Number of Rows :
- 12
- Impedance :
- 100Ohm
- Number of Ground Positions :
- 64
- Contact Material :
- Copper
- Circuit Application :
- Signal
- Operating Supply Voltage :
- 30V
- Durability :
- 500 Cycles
- Mount :
- Through Hole
- Dielectric Withstanding Voltage :
- 500VAC V
- ELV :
- Compliant
- Voltage - Rated :
- 30VAC/DC
- Max Current Rating :
- 750mA
- Contact Resistance :
- 10MOhm
- Number of Columns :
- 16
- Reliability :
- COMMERCIAL
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Number of Signal Positions :
- 128
- Length :
- 36.9mm
- Stack Height :
- 11.95mm
- Width :
- 20.8026mm
- Body Breadth :
- 0.819 inch
- RoHS Status :
- RoHS Compliant
- Total Number of Contacts :
- 192
- Gender :
- Male
- Height :
- 24.6126mm
- Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Number Of PCB Rows :
- 12
- Plating Thickness :
- 760 nm
- Number of Positions :
- 192
- Mating Alignment :
- With
- Insulation Resistance :
- 1000000000Ohm
- Underplate Material :
- Nickel
- Length - Tail :
- 1.4mm
- Row Spacing :
- 1.35 mm
- ECCN Code :
- EAR99
- Polarization Key :
- POLARIZED HOUSING
- Operating Temperature :
- -55°C~ 85°C
- Make First / Break Last :
- No
- Flammability Rating :
- UL94 V-0
- Max Voltage Rating (AC) :
- 120V
- Packaging :
- Bulk
- Orientation :
- Vertical
- Depth :
- 20.8mm
- Series :
- Impact
- Termination :
- Press-Fit
- Connector Style :
- Impact, Guide Left
- Reference Standard :
- UL, CSA
- Published :
- 2011
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 12 Weeks
- Housing Material :
- Polymer
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish :
- Gold
- Rated Current (Signal) :
- 0.75A
- PCB Contact Pattern :
- RECTANGULAR
- Differential Pairs per Column :
- 4
- Datasheets
- 2007825-1
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 192 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2007825-1 Overview
Packaging is in the form of Header, Male Pins.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Impact Series.There is a mounting hole at Through Hole.Devices operate at -55°C~ 85°C operating temperatures.A supply voltage of 30V is necessary for this Backplane Connector to work.
