2007815-3
Or copy the link below:
- Mfr.Part #
- 2007815-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 120POS PCB
- Stock
- 108
- In Stock ：
- 108
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Impedance :
- 100Ohm
- Number of Ground Positions :
- 40
- Operating Supply Voltage :
- 30V
- Series :
- Impact
- Termination :
- Press-Fit
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Published :
- 2013
- Shrouding :
- Fully Shrouded
- PCB Thickness :
- 1mm
- Contact Current Rating :
- 750mA
- Mounting Type :
- Through Hole
- Width :
- 20.8026mm
- Differential Signaling :
- yes
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Positions :
- 120
- Stack Height :
- 11.95mm
- Length - Tail :
- 1.4mm
- Length :
- 26.9mm
- Operating Temperature :
- -55°C~ 85°C
- Mating Alignment :
- With
- Orientation :
- Vertical
- Data Rate :
- 25 Gbps
- Factory Lead Time :
- 14 Weeks
- Number of Signal Positions :
- 80
- Circuit Application :
- Signal
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Row Spacing :
- 1.35 mm
- Voltage - Rated DC :
- 30V
- Material Flammability Rating :
- UL94 V-0
- Hole Diameter :
- 381 µm
- Color :
- Black
- Pitch :
- 0.075 1.91mm
- Connector Type :
- Header, Male Pins
- Differential Pairs per Column :
- 4
- Number of Positions Loaded :
- All
- Packaging :
- Tube
- Max Current Rating :
- 750mA
- Connector Style :
- Impact, Guide Right
- Housing Material :
- Polymer
- Make First / Break Last :
- No
- Number of Columns :
- 10
- Number of Rows :
- 12
- Contact Finish :
- Gold
- Height :
- 24.6mm
- ELV :
- Compliant
- Current Rating :
- 750mA
- Underplate Material :
- Nickel
- Plating Thickness :
- 760 nm
- Contact Plating :
- Gold, Tin
- Datasheets
- 2007815-3

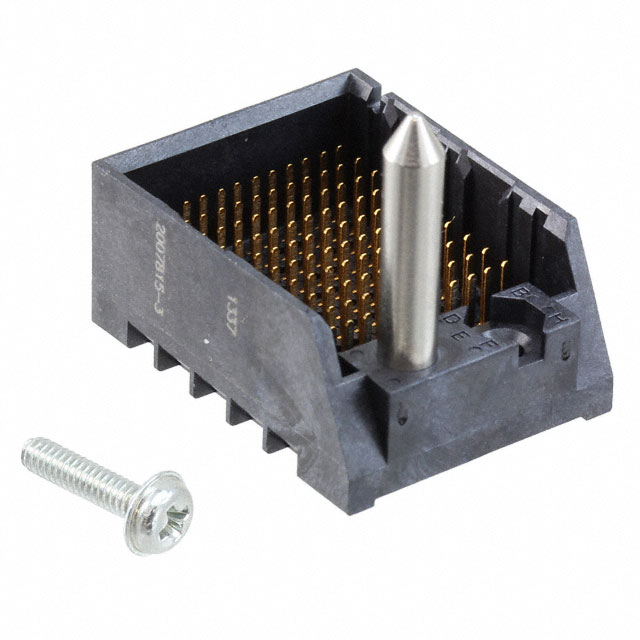

Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 120 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Through Hole
2007815-3 Overview
This product is packaged in a Header, Male Pins box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Impact Series.Operating temperature is set to -55°C~ 85°C.The Backplane Connector is capable of working with a supply voltage of 30V.
2007815-3 Features
Impact series
2007815-3 Applications
There are a lot of TE Connectivity AMP Connectors
2007815-3 Backplane Connectors applications.
