2007811-2
Or copy the link below:
- Mfr.Part #
- 2007811-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 120POS PCB
- Stock
- 38,155
- In Stock ：
- 38,155
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Reference Standard :
- UL, CSA
- Differential Signaling :
- yes
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Positions Loaded :
- All
- Contact Finish :
- Gold
- Factory Lead Time :
- 9 Weeks
- Operating Temperature :
- -55°C~ 85°C
- Make First / Break Last :
- No
- RoHS Status :
- RoHS Compliant
- Length - Tail :
- 1.4mm
- Shrouding :
- Fully Shrouded
- Plating Thickness :
- 760 nm
- PCB Contact Pattern :
- RECTANGULAR
- Number of Ground Positions :
- 40
- Total Number of Contacts :
- 120
- Housing Material :
- Polymer
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Number of Conductors :
- ONE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 750mA
- PCB Thickness :
- 1mm
- Max Current Rating :
- 750mA
- Connector Type :
- Header, Male Pins
- Orientation :
- Vertical
- Number of Positions :
- 120
- Underplate Material :
- Nickel
- Rated Current (Signal) :
- 0.75A
- Mounting Type :
- Through Hole
- Contact Pattern :
- RECTANGULAR
- Height :
- 24.6126mm
- Circuit Application :
- Signal
- Published :
- 2015
- Number of Signal Positions :
- 80
- Mating Alignment :
- With
- Packaging :
- Box
- Number of Rows :
- 12
- Differential Pairs per Column :
- 4
- Polarization Key :
- POLARIZED HOUSING
- Termination :
- Press-Fit
- Dielectric Withstanding Voltage :
- 500VAC V
- Hole Diameter :
- 381 µm
- Data Rate :
- 25 Gbps
- Durability :
- 500 Cycles
- Length :
- 26.9mm
- Width :
- 20.8026mm
- Reliability :
- COMMERCIAL
- Material Flammability Rating :
- UL94 V-0
- Number of Columns :
- 10
- Body Breadth :
- 0.819 inch
- Insertion Force-Max :
- .3336 N
- Color :
- Black
- Contact Plating :
- Gold, Tin
- Series :
- Impact
- Mount :
- Through Hole
- Impedance :
- 100Ohm
- Connector Style :
- Impact, Guide Left
- ELV :
- Compliant
- Row Spacing :
- 1.35 mm
- Number Of PCB Rows :
- 12
- Stack Height :
- 11.95mm
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 750mA
- Operating Supply Voltage :
- 30V
- Pitch :
- 0.075 1.91mm
- Datasheets
- 2007811-2

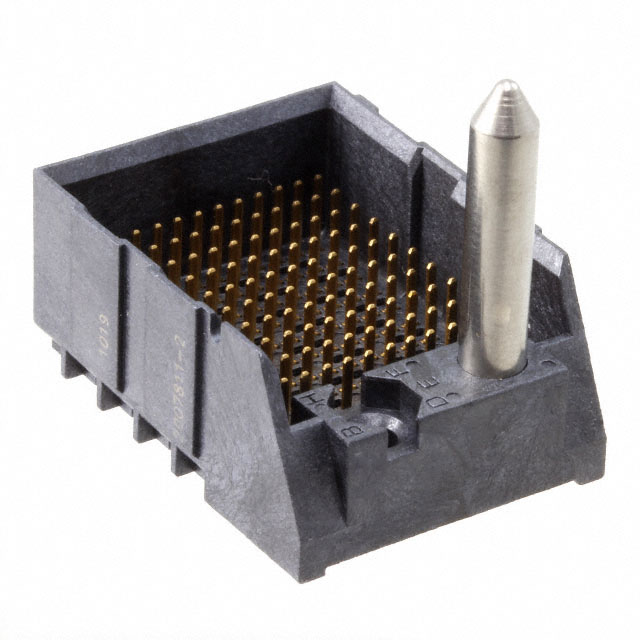

Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 120 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Box Through Hole
2007811-2 Overview
The product is packaged in Header, Male Pins.This device is mounted in the Through Hole position.It has been determined that a Box case is necessary to package the product.There is a product in the Impact Series.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~ 85°C Operating Temperature.A supply voltage of 30V is required to operate this Backplane Connector.
2007811-2 Features
Impact series
2007811-2 Applications
There are a lot of TE Connectivity AMP Connectors
2007811-2 Backplane Connectors applications.
