2007811-1
Or copy the link below:
- Mfr.Part #
- 2007811-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 120POS PCB
- Stock
- 90
- In Stock ：
- 90
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Underplate Material :
- Nickel
- Contact Finish :
- Gold
- Operating Temperature :
- -55°C~ 85°C
- Max Current Rating :
- 750mA
- Connector Type :
- Header, Male Pins
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Conductors :
- ONE
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 30VAC/DC
- RoHS Status :
- RoHS Compliant
- Length - Tail :
- 1.4mm
- Contact Pattern :
- RECTANGULAR
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- REACH SVHC :
- Unknown
- Current Rating (Amps) :
- 0.75A
- Pitch :
- 0.075 1.91mm
- Published :
- 2011
- Total Number of Contacts :
- 120
- Dielectric Withstanding Voltage :
- 500VAC V
- Mount :
- Through Hole
- Row Spacing :
- 1.35 mm
- Durability :
- 500 Cycles
- Impedance :
- 100Ohm
- Gender :
- Male
- Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Number of Rows :
- 12
- Contact Plating :
- Gold, Tin
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Copper
- Hole Diameter :
- 381 µm
- Plating Thickness :
- 760 nm
- Factory Lead Time :
- 19 Weeks
- Number of Signal Positions :
- 80
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 750mA
- Color :
- Black
- Stack Height :
- 11.95mm
- Termination :
- Press-Fit
- Series :
- Impact
- Body Breadth :
- 0.819 inch
- Mating Alignment :
- With
- Number of Positions :
- 120
- Shrouding :
- Fully Shrouded
- Height :
- 24.6126mm
- Orientation :
- Vertical
- Differential Signaling :
- yes
- Circuit Application :
- Signal
- Differential Pairs per Column :
- 4
- Polarization Key :
- POLARIZED HOUSING
- Number of Ground Positions :
- 40
- Data Rate :
- 25 Gbps
- Reliability :
- COMMERCIAL
- Current Rating :
- 750mA
- Packaging :
- Bulk
- Insertion Force-Max :
- .3336 N
- PCB Thickness :
- 1mm
- Operating Supply Voltage :
- 30V
- Number of Columns :
- 10
- Housing Material :
- Polymer
- Number of Positions Loaded :
- All
- PCB Contact Pattern :
- RECTANGULAR
- Length :
- 26.9mm
- Width :
- 20.8026mm
- Reference Standard :
- UL, CSA
- Number Of PCB Rows :
- 12
- Make First / Break Last :
- No
- Datasheets

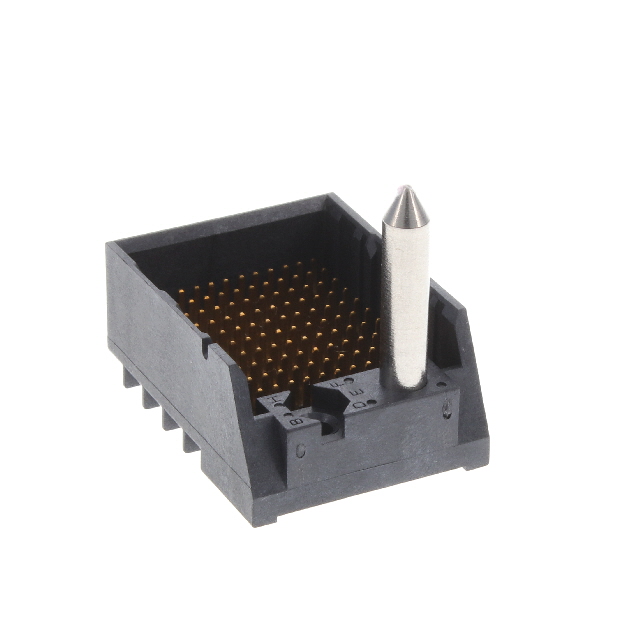

- 2007811-1
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 120 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2007811-1 Overview
Packaging is Header, Male Pins.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Impact Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -55°C~ 85°C Operating Temperature.The Backplane Connector is functional when supplied with voltage 30V.
