2007809-2
Or copy the link below:
- Mfr.Part #
- 2007809-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- IMP100S,H,V4P10C,LG,OEW39,4.9
- Stock
- 49
- In Stock ：
- 49
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Pitch :
- 0.075 1.91mm
- Max Current Rating :
- 750mA
- Body Breadth :
- 0.819 inch
- Mating Alignment :
- With
- Connector Style :
- Impact, Guide Left
- Make First / Break Last :
- No
- Differential Signaling :
- yes
- Housing Material :
- Polymer
- Flammability Rating :
- UL94 V-0
- Circuit Application :
- Signal
- Total Number of Contacts :
- 120
- Number of Rows :
- 12
- Number Of PCB Rows :
- 12
- Termination :
- Press-Fit
- ELV :
- Compliant
- Mounting Type :
- Through Hole
- Mounting Option 2 :
- LOCKING
- Height :
- 24.6126mm
- Packaging :
- Box
- Contact Layout, Typical :
- 80 Signal, 40 Ground
- Number of Signal Positions :
- 80
- Current Rating (Amps) :
- 0.75A
- Operating Supply Voltage :
- 30V
- Contact Finish :
- Gold
- Polarization Key :
- POLARIZED HOUSING
- Contact Plating :
- Gold, Tin
- Impedance :
- 100Ohm
- Withdrawl Force-Min :
- .139 N
- Underplate Material :
- Nickel
- Length - Tail :
- 1.4mm
- Number of Positions :
- 120
- Contact Pattern :
- RECTANGULAR
- Hole Diameter :
- 381 µm
- Shrouding :
- Partially Shrouded
- Number of Conductors :
- ONE
- RoHS Status :
- RoHS Compliant
- Number of Columns :
- 10
- Material Flammability Rating :
- UL94 V-0
- Differential Pairs per Column :
- 4
- Dielectric Withstanding Voltage :
- 500VAC V
- Stack Height :
- 11.95mm
- Operating Temperature :
- -55°C~85°C
- Published :
- 2013
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Width :
- 20.8026mm
- Reference Standard :
- UL, CSA
- Current Rating :
- 750mA
- PCB Contact Pattern :
- RECTANGULAR
- Contact Current Rating :
- 750mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header, Male Pins
- Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Plating Thickness :
- 760 nm
- Length :
- 25.5mm
- Number of Ground Positions :
- 40
- Number of Positions Loaded :
- All
- Series :
- Impact
- Row Spacing :
- 1.35 mm
- Insertion Force-Max :
- .3336 N
- Data Rate :
- 25 Gbps
- PCB Thickness :
- 1mm
- Mounting Option 1 :
- Guide Pin
- Reliability :
- COMMERCIAL
- PCB Mounting Orientation :
- Vertical
- Datasheets
- 2007809-2

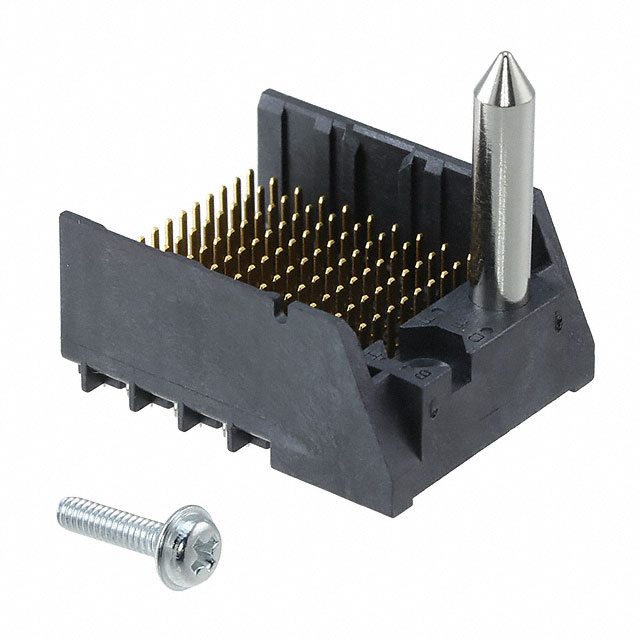

Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 120 Positions Pitch: 0.075 1.91mm -55°C~85°C Box Through Hole
2007809-2 Overview
The packaging contains Header, Male Pins.There is a Through Hole mounting type for the device.This product is packaged in a case marked Box.Product number Impact belongs to the Impact Series.This device operates at a temperature of -55°C~85°C.When the supply voltage is set to 30V, this Backplane Connector will work.
2007809-2 Features
Impact series
2007809-2 Applications
There are a lot of TE Connectivity AMP Connectors
2007809-2 Backplane Connectors applications.
