2007809-1
Or copy the link below:
- Mfr.Part #
- 2007809-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 120POS PCB
- Stock
- 460
- In Stock ：
- 460
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Voltage - Rated :
- 30VAC/DC
- Contact Current Rating :
- 750mA
- Contact Plating :
- Gold, Tin
- Stack Height :
- 11.95mm
- Reference Standard :
- UL, CSA
- Body Breadth :
- 0.819 inch
- Dielectric Withstanding Voltage :
- 500VAC V
- Reliability :
- COMMERCIAL
- ELV :
- Compliant
- Pitch :
- 0.075 1.91mm
- Number Of PCB Rows :
- 12
- Contact Material :
- Copper
- Gender :
- Male
- Color :
- Black
- Circuit Application :
- Signal
- Number of Positions :
- 120
- Packaging :
- Bulk
- Number of Ground Positions :
- 40
- Number of Signal Positions :
- 80
- Max Current Rating :
- 750mA
- PCB Contact Pattern :
- RECTANGULAR
- Withdrawl Force-Min :
- .139 N
- Differential Signaling :
- yes
- Underplate Material :
- Nickel
- Orientation :
- Vertical
- Contact Finish :
- Gold
- Height :
- 24.6126mm
- Connector Type :
- Header, Male Pins
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Data Rate :
- 25 Gbps
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Total Number of Contacts :
- 120
- Termination :
- Press-Fit
- Connector Style :
- Impact, Guide Left
- REACH SVHC :
- Unknown
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Hole Diameter :
- 381 µm
- Number of Columns :
- 10
- Polarization Key :
- POLARIZED HOUSING
- Current Rating (Amps) :
- 0.75A
- Factory Lead Time :
- 12 Weeks
- Length :
- 25.5mm
- Length - Tail :
- 1.4mm
- Current Rating :
- 750mA
- Differential Pairs per Column :
- 4
- Housing Material :
- Polymer
- Mating Alignment :
- With
- Row Spacing :
- 1.35 mm
- Number of Rows :
- 12
- Plating Thickness :
- 760 nm
- Make First / Break Last :
- No
- Impedance :
- 100Ohm
- Insertion Force-Max :
- .3336 N
- Material Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 30V
- Width :
- 20.8026mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Positions Loaded :
- All
- Operating Temperature :
- -55°C~ 85°C
- Published :
- 2011
- PCB Thickness :
- 1mm
- Number of Conductors :
- ONE
- Shrouding :
- Partially Shrouded
- RoHS Status :
- RoHS Compliant
- Mount :
- Through Hole
- Series :
- Impact
- Contact Pattern :
- RECTANGULAR
- Datasheets
- 2007809-1

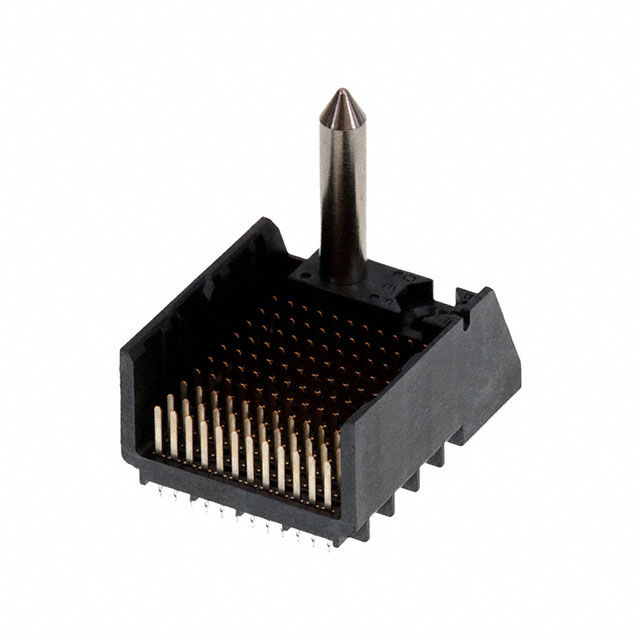

Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 120 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2007809-1 Overview
A Header, Male Pins package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Impact Series of products.Through Hole mounts the part.There is no operating temperature for the device.This Backplane Connector operates with a supply voltage of 30V.
