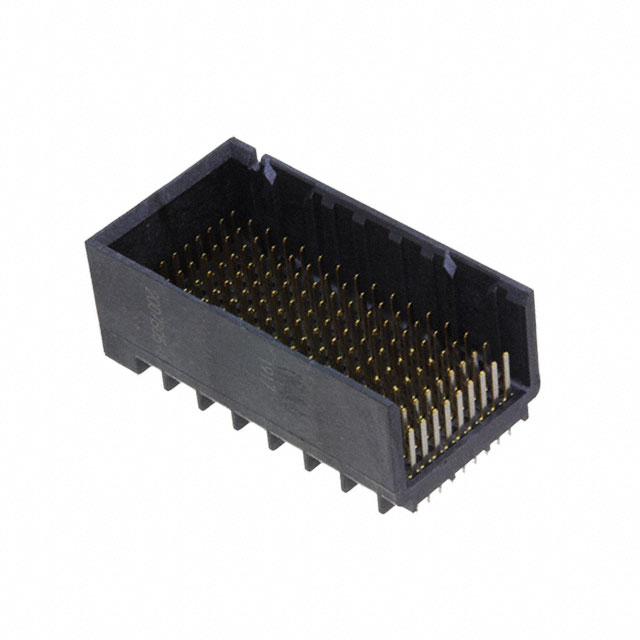

2007805-1
Or copy the link below:
- Mfr.Part #
- 2007805-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 144POS PCB
- Stock
- 128
- In Stock ：
- 128
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Min Operating Temperature :
- -55°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2011
- Current Rating :
- 750mA
- Max Operating Temperature :
- 85°C
- Housing Material :
- Polymer
- Number of Positions Loaded :
- All
- Termination :
- Press-Fit
- Orientation :
- Straight
- Mounting Type :
- Through Hole
- Connector Type :
- Header, Male Pins
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Number of Contacts :
- 144
- Contact Material :
- Copper
- Color :
- Black
- Sealable :
- No
- Contact Finish :
- Gold
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Row Spacing :
- 1.35 mm
- Operating Temperature :
- -55°C~ 85°C
- Mount :
- Through Hole
- Contact Plating :
- Gold
- Length :
- 31.7mm
- Voltage - Rated :
- 30VAC/DC
- Number of Columns :
- 16
- Shrouding :
- Partially Shrouded
- Number of Rows :
- 9
- REACH SVHC :
- Unknown
- Factory Lead Time :
- 19 Weeks
- Mating Alignment :
- With
- RoHS Status :
- RoHS Compliant
- Gender :
- Male
- Circuit Application :
- Signal
- Connector Style :
- Impact
- Current Rating (Amps) :
- 0.75A
- Packaging :
- Bulk
- Series :
- Impact
- Number of Positions :
- 144
- Max Current Rating :
- 750mA
- Material Flammability Rating :
- UL94 V-0
- Pitch :
- 0.075 1.91mm
- Datasheets
- 2007805-1
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 144 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2007805-1 Overview
Packaging is in the form of Header, Male Pins.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Impact Series.If the temperature is below 85°C, it's best to use it.-55°C is the minimum temperature for this device.There is a mounting hole at Through Hole.Devices operate at -55°C~ 85°C operating temperatures.
2007805-1 Features
Impact series
2007805-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007805-1 Backplane Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
