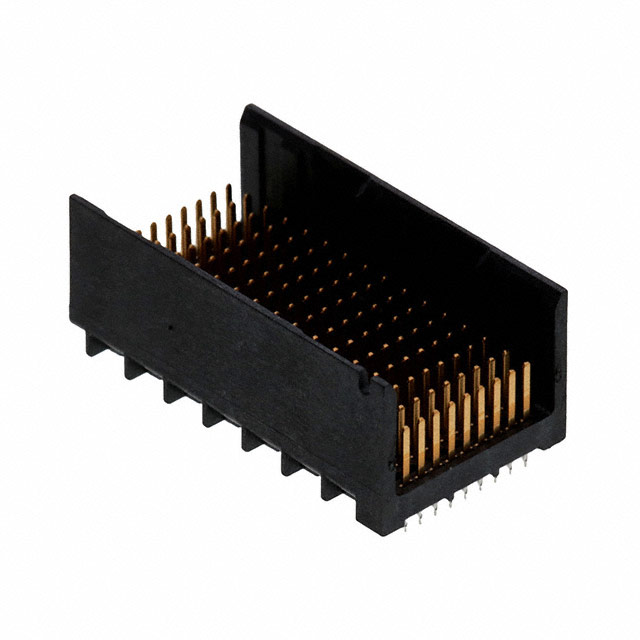

2007804-1
Or copy the link below:
- Mfr.Part #
- 2007804-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 144POS PCB
- Stock
- 96
- In Stock ：
- 96
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Packaging :
- Bulk
- Pitch :
- 0.075 1.91mm
- Row Spacing :
- 1.35 mm
- Number of Positions Loaded :
- All
- Min Operating Temperature :
- -55°C
- Operating Temperature :
- -55°C~ 85°C
- Depth :
- 16.7mm
- Shrouding :
- Partially Shrouded
- Max Current Rating :
- 750mA
- Series :
- Impact
- Current Rating :
- 750mA
- Factory Lead Time :
- 17 Weeks
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Circuit Application :
- Signal
- Termination :
- Press-Fit
- Contact Finish :
- Gold
- Number of Contacts :
- 144
- Number of Columns :
- 16
- Max Operating Temperature :
- 85°C
- Mounting Type :
- Through Hole
- REACH SVHC :
- Unknown
- Color :
- Black
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Connector Type :
- Header, Male Pins
- Max Voltage Rating (AC) :
- 30V
- Orientation :
- Straight
- Published :
- 2011
- Housing Material :
- Polymer
- Length :
- 30.3mm
- Number of Rows :
- 9
- Mating Alignment :
- With
- Sealable :
- No
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 144
- Contact Plating :
- Gold
- Mount :
- Through Hole
- Gender :
- Male
- Contact Material :
- Copper
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Style :
- Impact
- Datasheets
- 2007804-1
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 144 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2007804-1 Overview
It comes in a Header, Male Pins package.Through Hole is the mounting type of the device.We pack the product in a Bulk case.This is from the Impact Series.The ideal temperature for using it is below 85°C.There must be a minimum temperature of -55°C.This part is mounted by Through Hole. -55°C~ 85°C Operating Temperature is the default.
2007804-1 Features
Impact series
2007804-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007804-1 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
