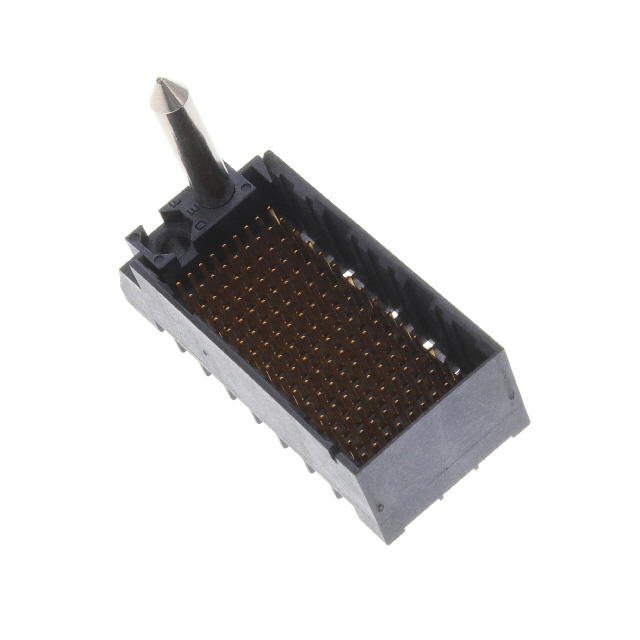

2007799-1
Or copy the link below:
- Mfr.Part #
- 2007799-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 144POS PCB
- Stock
- 104
- In Stock ：
- 104
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Positions Loaded :
- All
- RoHS Status :
- RoHS Compliant
- Max Operating Temperature :
- 85°C
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Min Operating Temperature :
- -55°C
- Sealable :
- No
- Number of Positions :
- 144
- Operating Temperature :
- -55°C~ 85°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 144
- Mounting Type :
- Through Hole
- Contact Finish :
- Gold
- Circuit Application :
- Signal
- Mating Alignment :
- With
- Shrouding :
- Partially Shrouded
- REACH SVHC :
- Unknown
- Contact Material :
- Copper
- Housing Material :
- Polymer
- Max Current Rating :
- 750mA
- Connector Type :
- Header, Male Pins
- Pitch :
- 0.075 1.91mm
- Factory Lead Time :
- 19 Weeks
- Connector Style :
- Impact, Guide Right
- Length :
- 38.3mm
- Current Rating :
- 750mA
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- Straight
- Packaging :
- Bulk
- Current Rating (Amps) :
- 0.75A
- Contact Plating :
- Gold
- Mount :
- Through Hole
- Number of Rows :
- 9
- Series :
- Impact
- Published :
- 2011
- Gender :
- Male
- Number of Columns :
- 16
- Color :
- Black
- Row Spacing :
- 1.35 mm
- Termination :
- Press-Fit
- Voltage - Rated :
- 30VAC/DC
- Datasheets
- 2007799-1
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 144 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2007799-1 Overview
It comes in Header, Male Pins packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Impact Series of products.It's best to use it when the temperature is below 85°C.This device must operate at a minimum temperature of -55°C.The part is mounted by Through Hole.The device runs in -55°C~ 85°C Operating Temperature.
2007799-1 Features
Impact series
2007799-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007799-1 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
