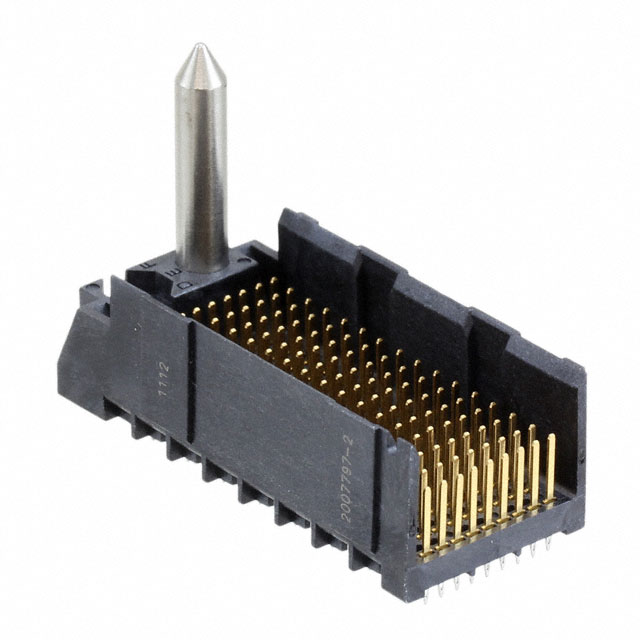

2007797-2
Or copy the link below:
- Mfr.Part #
- 2007797-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 144POS PCB
- Stock
- 43,507
- In Stock ：
- 43,507
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Series :
- Impact
- Underplate Material :
- Nickel
- Sealable :
- No
- Packaging :
- Tube
- Material Flammability Rating :
- UL94 V-0
- Number of Signal Positions :
- 96
- Height :
- 24.6126mm
- Connector Style :
- Impact, Guide Right
- Number of Pairs :
- 48
- Number of Ground Positions :
- 48
- Number of Positions :
- 144
- Mating Alignment :
- With
- Shrouding :
- Partially Shrouded
- Differential Pairs per Column :
- 3
- Current Rating :
- 750mA
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -67°C
- Impedance :
- 100Ohm
- Pitch :
- 0.075 1.91mm
- Length :
- 36.9mm
- Hole Diameter :
- 381 µm
- Termination :
- Press-Fit
- Contact Current Rating :
- 750mA
- Length - Tail :
- 1.4mm
- Mount :
- Through Hole
- Color :
- Black
- RoHS Status :
- RoHS Compliant
- Max Current Rating :
- 750mA
- Stackable :
- No
- Operating Supply Voltage :
- 30V
- Row Spacing :
- 1.35 mm
- Housing Material :
- Polymer
- Number of Rows :
- 9
- Published :
- 2012
- Orientation :
- Vertical
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 19 Weeks
- ELV :
- Compliant
- Max Operating Temperature :
- 185°C
- PCB Mounting Orientation :
- Vertical
- Connector Type :
- Header, Male Pins
- Circuit Application :
- Signal
- Housing Color :
- Black
- Contact Style :
- Press-Fit
- Number of Columns :
- 16
- Number of Contacts :
- 144
- Number of Positions Loaded :
- All
- Contact Finish :
- Gold
- PCB Thickness :
- 1mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Operating Temperature :
- -55°C~ 85°C
- Width :
- 16.7mm
- Data Rate :
- 25 Gbps
- Contact Plating :
- Gold, Tin
- Differential Signaling :
- yes
- Make First / Break Last :
- No
- Plating Thickness :
- 760 nm
- Datasheets
- 2007797-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 144 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Through Hole
2007797-2 Overview
Packaging is in the form of Header, Male Pins.This device has a Through Hole mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Impact Series.If the temperature is below 185°C, it's best to use it.-67°C is the minimum temperature for this device.There is a mounting hole at Through Hole.Devices operate at -55°C~ 85°C operating temperatures.A supply voltage of 30V is necessary for this Backplane Connector to work.
2007797-2 Features
Impact series
2007797-2 Applications
There are a lot of TE Connectivity AMP Connectors
2007797-2 Backplane Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
