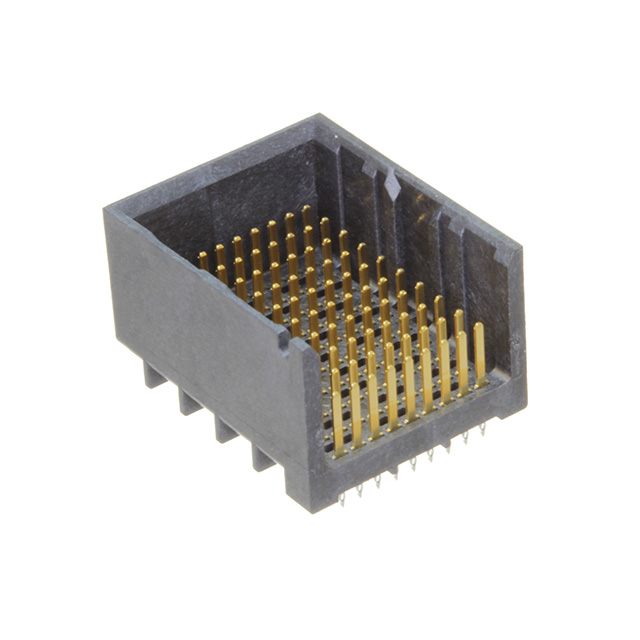

2007791-1
Or copy the link below:
- Mfr.Part #
- 2007791-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- IMP100S,H,V3P10C,UG,REW39,4.5
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Operating Supply Voltage :
- 30V
- PCB Thickness :
- 1mm
- Width :
- 16.7mm
- Circuit Application :
- Signal
- Number of Contacts :
- 90
- Impedance :
- 100Ohm
- Max Current Rating :
- 750mA
- Plating Thickness :
- 760 nm
- Differential Signaling :
- yes
- Data Rate :
- 25 Gbps
- RoHS Status :
- RoHS Compliant
- Number of Signal Positions :
- 60
- Number of Columns :
- 10
- Factory Lead Time :
- 19 Weeks
- Differential Pairs per Column :
- 3
- Contact Style :
- Press-Fit
- Current Rating :
- 750mA
- Contact Current Rating :
- 750mA
- Housing Color :
- Black
- PCB Mounting Orientation :
- Vertical
- Orientation :
- Vertical
- Length :
- 20.3mm
- Flammability Rating :
- UL94 V-0
- Published :
- 2011
- Make First / Break Last :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Gold, Tin
- Number of Rows :
- 9
- Termination :
- Press-Fit, Solder
- Min Operating Temperature :
- -67°C
- Contact Material :
- Copper
- Length - Tail :
- 1.4mm
- Gender :
- Male
- ELV :
- Compliant
- Pitch :
- 1.9mm
- REACH SVHC :
- Unknown
- Number of Pairs :
- 30
- Number of Positions :
- 90
- Underplate Material :
- Nickel
- Mount :
- Through Hole
- Height :
- 11.95mm
- Hole Diameter :
- 381 µm
- Shrouding :
- Partially Shrouded
- Connector Type :
- PLUG
- Row Spacing :
- 1.35 mm
- Sealable :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mating Alignment :
- With
- Number of Ground Positions :
- 30
- Stackable :
- No
- Housing Material :
- Polymer
- Max Operating Temperature :
- 185°C
- Datasheets
- 2007791-1
Plug Press-Fit, Solder 90 Positions Pitch: 1.9mm
2007791-1 Overview
Currently, it is packaged in Plug.A temperature below 185°C is best for using it.The device must run at -67°C degrees.Through Hole represents the mounting point for the part.If you supply the connector with a voltage of 30V, it will work.
2007791-1 Features
2007791-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007791-1 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
