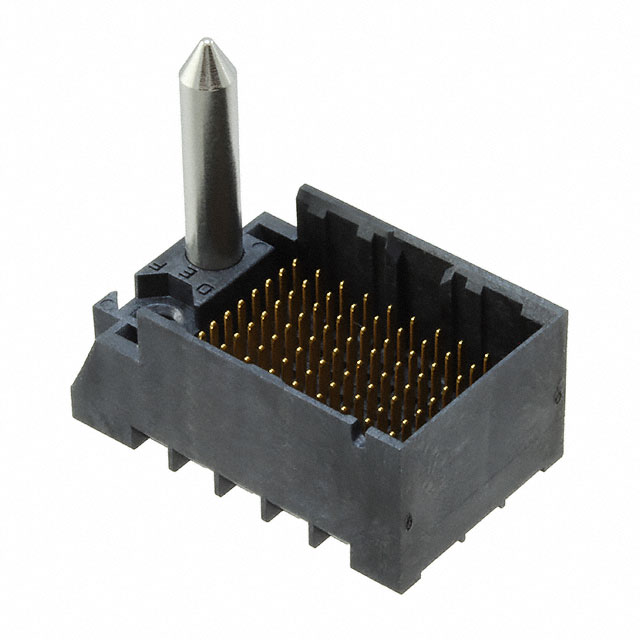

2007782-3
Or copy the link below:
- Mfr.Part #
- 2007782-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- IMP100S,H,V3P10C,RG,LEW46,5.5
- Stock
- 23,697
- In Stock ：
- 23,697
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Body Breadth :
- 0.657 inch
- Subcategory :
- Backplane Connectors
- Termination Type :
- Solder
- Terminal Pitch :
- 1.905 mm
- Shrouded :
- Fully Shrouded
- Contact Plating :
- Gold, Tin
- Current Rating :
- 750 mA
- Differential Pairs per Column :
- 3
- Height :
- 24.6126 mm
- Manufacturer :
- TE Connectivity
- Number of Positions :
- 90
- Lifecycle Status :
- Production (Last Updated: 6 days ago)
- Number of Contacts :
- 90
- Packaging :
- Box|Tube
- Underplate Material :
- Nickel
- Tail Length :
- 1.4 mm
- Contact Pattern :
- RECTANGULAR
- Reference Standard :
- UL, CSA
- Number of Pairs :
- 30
- Contact Material :
- NOT SPECIFIED
- Insulator Color :
- Black
- Number of Rows :
- 9
- Differential Signaling :
- yes
- PCB Contact Row Spacing :
- 1.3462 mm
- Product Category :
- High Speed / Modular Connectors
- Housing Color :
- Black
- Sealable :
- No
- Length :
- 26.9 mm
- RoHS :
- Details
- Data Rate :
- 25 Gbps
- Orientation :
- Vertical
- Impedance :
- 100 Ω
- Reach Compliance Code :
- Compliant
- Brand :
- TE Connectivity
- Housing Material :
- Polymer
- Terminal Length :
- 0.055 inch
- Contact Style :
- Press-Fit
- Mounting Option 1 :
- Guide Pin
- Automotive :
- No
- Max Current Rating :
- 750 mA
- PPAP :
- No
- Body Depth :
- 0.47 inch
- Mating Contact Pitch :
- 0.075 inch
- PCB Mounting Orientation :
- Vertical
- Mounting Type :
- BOARD
- Hole Diameter :
- 457.2 µm
- Body/Shell Style :
- Receptacle
- Number of Signal Positions :
- 60
- PCB Contact Pattern :
- RECTANGULAR
- Product Type :
- High Speed / Modular Connectors
- Mounting Option 2 :
- LOCKING
- Flammability Rating :
- UL94 V-0
- Stackable :
- No
- Number of Ground Positions :
- 30
- Polarization Key :
- POLARIZED HOUSING
- Pitch :
- 1.905 mm
- Number of Columns :
- 10
- PCB Thickness :
- 1 mm
- Total Number of Contacts :
- 90
- Factory Lead Time :
- 20 Weeks, 5 Days
- EU RoHS :
- Compliant
- Mating Contact Row Spacing :
- 0.053 inch
- Connector Type :
- PLUG
- Circuit Application :
- Signal
- Operating Supply Voltage :
- 30 V
- Termination :
- Press-Fit
- Brand Name :
- TE Connectivity
- Mating Alignment :
- With
- Max Operating Temperature :
- 185 °C
- Row Spacing :
- 1.35 mm
- Contact Current Rating :
- 750 mA
- Min Operating Temperature :
- -67 °C
- Contact Gender :
- Male
- ECCN (US) :
- EAR99
- Reliability :
- COMMERCIAL
- Plating Thickness :
- 760 nm
- Number Of PCB Rows :
- 9
- SVHC :
- yes
- Make First / Break Last :
- No
- Mounting Style :
- Straight
- Width :
- 16.7 mm
- Datasheets
- 2007782-3
