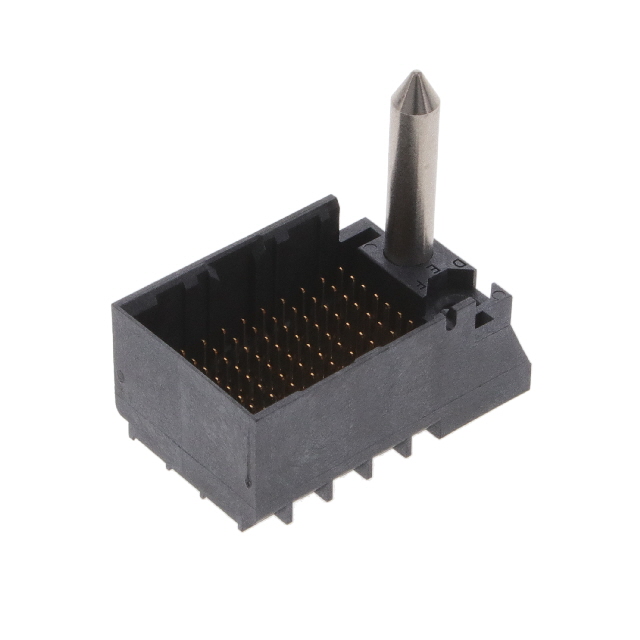

2007779-1
Or copy the link below:
- Mfr.Part #
- 2007779-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 90POS PCB
- Stock
- 22,582
- In Stock ：
- 22,582
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Packaging :
- Bulk
- Factory Lead Time :
- 19 Weeks
- Current Rating :
- 750mA
- PCB Contact Pattern :
- RECTANGULAR
- Reference Standard :
- UL, CSA
- Color :
- Black
- Underplate Material :
- Nickel
- Body Breadth :
- 0.657 inch
- Differential Pairs per Column :
- 3
- Number of Positions :
- 90
- Differential Signaling :
- yes
- Number of Ground Positions :
- 30
- REACH SVHC :
- Unknown
- Gender :
- Male
- Contact Plating :
- Gold, Tin
- Plating Thickness :
- 760 nm
- Mating Alignment :
- With
- Current Rating (Amps) :
- 0.75A
- Height :
- 24.6126mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Data Rate :
- 25 Gbps
- Number of Columns :
- 10
- Orientation :
- Vertical
- Make First / Break Last :
- No
- Pitch :
- 0.075 1.91mm
- Housing Material :
- Polymer
- Contact Style :
- BLADE PIN-SKT
- Contact Material :
- Copper
- Flammability Rating :
- UL94 V-0
- Body Depth :
- 0.47 inch
- Connector Style :
- Impact, Guide Left
- Number of Rows :
- 9
- Length :
- 26.9mm
- Voltage - Rated :
- 30VAC/DC
- Shrouding :
- Fully Shrouded
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Series :
- Impact
- Circuit Application :
- Signal
- Reliability :
- COMMERCIAL
- Termination :
- Press-Fit
- Max Current Rating :
- 750mA
- Impedance :
- 100Ohm
- Mount :
- Through Hole
- Connector Type :
- Header, Male Pins
- Length - Tail :
- 1.4mm
- Operating Temperature :
- -55°C~ 85°C
- Number Of PCB Rows :
- 9
- Number of Signal Positions :
- 60
- Body/Shell Style :
- Receptacle
- Operating Supply Voltage :
- 30V
- Durability :
- 200 Cycles
- Mounting Type :
- Through Hole
- Contact Finish :
- Gold
- Published :
- 2011
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Polarization Key :
- POLARIZED HOUSING
- Number of Positions Loaded :
- All
- Hole Diameter :
- 381 µm
- Row Spacing :
- 1.35 mm
- PCB Thickness :
- 1mm
- Contact Pattern :
- RECTANGULAR
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Number of Conductors :
- ONE
- Width :
- 16.7mm
- Material Flammability Rating :
- UL94 V-0
- Total Number of Contacts :
- 90
- Contact Current Rating :
- 750mA
- Datasheets
- 2007779-1
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 90 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2007779-1 Overview
Packaging for this item is Header, Male Pins.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Impact Series.Through Hole is used to mount the part.In this case, the device operates at -55°C~ 85°C Operating Temperature.This Backplane Connector can be used with a supply voltage of 30V.
2007779-1 Features
Impact series
2007779-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007779-1 Backplane Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
