2007747-1
Or copy the link below:
- Mfr.Part #
- 2007747-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 288POS EDGE MNT
- Stock
- 59
- In Stock ：
- 59
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Material Flammability Rating :
- UL94 V-0
- Number of Columns :
- 16
- Differential Signaling :
- yes
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Number of Contacts :
- 288
- Current Rating :
- 750mA
- Data Rate :
- 25 Gbps
- Color :
- Black
- Shrouding :
- Unshrouded
- Termination :
- Press-Fit
- Max Operating Temperature :
- 185°C
- Stackable :
- No
- Connector Type :
- Receptacle, Female Sockets
- Number of Signal Positions :
- 192
- Sealable :
- No
- Series :
- Impact
- Housing Material :
- Polymer
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Positions :
- 288
- Width :
- 37.3mm
- Packaging :
- Tube
- Make First / Break Last :
- No
- Number of Ground Positions :
- 96
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ELV :
- Compliant
- Operating Supply Voltage :
- 30V
- Plating Thickness :
- 760 nm
- Contact Current Rating :
- 750mA
- Gender :
- Receptacle
- Flammability Rating :
- UL94 V-0
- Row Spacing :
- 1.35 mm
- Contact Finish :
- Gold
- Published :
- 2011
- Impedance :
- 100Ohm
- Differential Pairs per Column :
- 6
- Hole Diameter :
- 381 µm
- Min Operating Temperature :
- -67°C
- Factory Lead Time :
- 18 Weeks
- Connector Usage :
- Daughtercard
- Length - Tail :
- 1.2mm
- Height :
- 27.1018mm
- Max Current Rating :
- 750mA
- PCB Thickness :
- 1mm
- Contact Plating :
- Gold, Tin
- Connector Style :
- Impact
- Pitch :
- 0.075 1.91mm
- Number of Pairs :
- 96
- Contact Style :
- Press-Fit
- Mating Alignment :
- With
- Number of Rows :
- 18
- RoHS Status :
- RoHS Compliant
- Circuit Application :
- Signal
- Orientation :
- RIGHT ANGLE
- Number of Positions Loaded :
- All
- Mount :
- Edge, Through Hole
- Housing Color :
- Black
- Operating Temperature :
- -55°C~ 85°C
- Underplate Material :
- Nickel
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Length :
- 30.4mm
- Datasheets

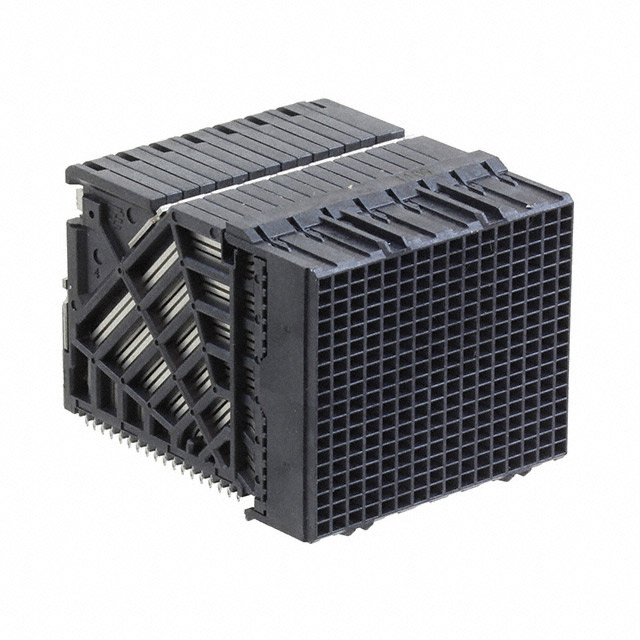

- 2007747-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 288 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2007747-1 Overview
Packaging for this item is Receptacle, Female Sockets.There is a mounting type of Board Edge, Through Hole, Right Angle for this device.It is necessary to use a Tube case for packaging the product.This product is part of the Impact Series.You should use it when it's below 185°C.A minimum temperature of -67°C is required for the operation of this device.Edge, Through Hole is used to mount the part.In this case, the device operates at -55°C~ 85°C Operating Temperature.This Backplane Connector can be used with a supply voltage of 30V.
2007747-1 Features
Impact series
2007747-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007747-1 Backplane Connectors applications.
