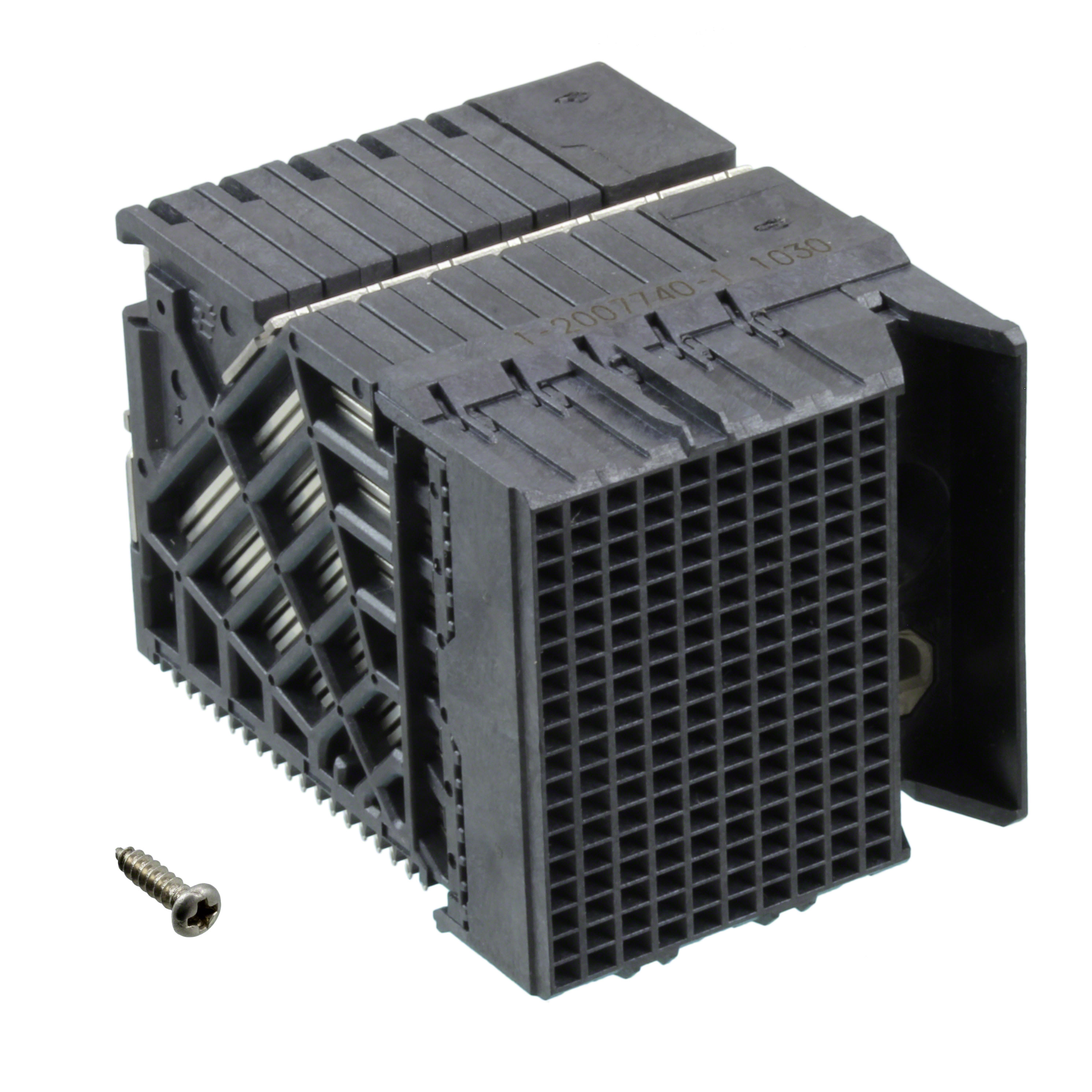

2007740-1
Or copy the link below:
- Mfr.Part #
- 2007740-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 180POS EDGE MNT
- Stock
- 7,258
- In Stock ：
- 7,258
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Stackable :
- No
- Hole Diameter :
- 381 µm
- Connector Style :
- Impact, Guide Right
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Current Rating :
- 750mA
- RoHS Status :
- RoHS Compliant
- Shrouding :
- Unshrouded
- Impedance :
- 100Ohm
- Housing Material :
- Polymer
- Voltage - Rated :
- 30V
- Number of Poles :
- 180
- Termination :
- Press-Fit
- Orientation :
- RIGHT ANGLE
- Mating Alignment :
- With
- Plating Thickness :
- 760 nm
- Packaging :
- Tube
- Width :
- 37.3mm
- Contact Current Rating :
- 750mA
- Max Current Rating :
- 750mA
- Contact Style :
- Press-Fit
- Factory Lead Time :
- 19 Weeks
- Underplate Material :
- Nickel
- Number of Ground Positions :
- 60
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Make First / Break Last :
- No
- Connector Usage :
- Daughtercard
- Shape :
- Sheet
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Contacts :
- 180
- Contact Plating :
- Gold, Tin
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Differential Pairs per Column :
- 6
- Pitch :
- 1.905mm
- Flammability Rating :
- UL94 V-0
- Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Differential Signaling :
- yes
- Operating Supply Voltage :
- 30V
- Housing Color :
- Black
- Max Operating Temperature :
- 185°C
- Number of Pairs :
- 60
- Length :
- 26.5938mm
- Number of Positions :
- 180
- Number of Columns :
- 10
- Min Operating Temperature :
- -67°C
- Current Rating (Amps) :
- 0.75A
- Series :
- Impact
- Length - Tail :
- 1.2mm
- Height :
- 27.1018mm
- ELV :
- Compliant
- Data Rate :
- 25 Gbps
- Number of Signal Positions :
- 120
- Circuit Application :
- Signal
- Feature :
- Board Guide
- Number of Rows :
- 18
- Contact Finish :
- Gold
- Sealable :
- No
- Published :
- 2011
- PCB Thickness :
- 1mm
- Row Spacing :
- 1.35 mm
- Connector Type :
- Receptacle, Female Sockets
- Operating Temperature :
- -55°C~ 85°C
- Datasheets
- 2007740-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 180 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2007740-1 Overview
The product is packaged in Receptacle, Female Sockets.This device is mounted in the Board Edge, Through Hole, Right Angle position.It has been determined that a Tube case is necessary to package the product.There is a product in the Impact Series.When the temperature is below 185°C, it is best to use it.A minimum operating temperature of -67°C is required for this device.There are a number of advantages to its Board Guide feature.As a result, the device runs at -55°C~ 85°C Operating Temperature.A supply voltage of 30V is required to operate this Backplane Connector.
2007740-1 Features
Impact series
2007740-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007740-1 Backplane Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
