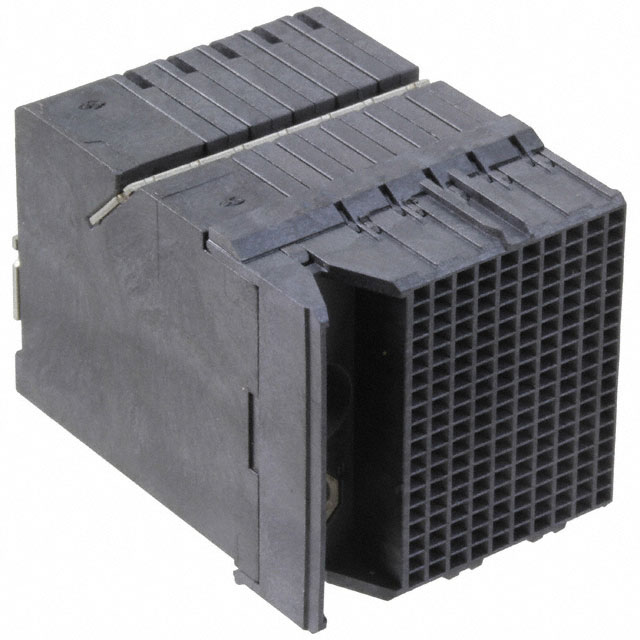

2007739-1
Or copy the link below:
- Mfr.Part #
- 2007739-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 180POS EDGE MNT
- Stock
- 51
- In Stock ：
- 51
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Plating Thickness :
- 760 nm
- Current Rating :
- 750mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Underplate Material :
- Nickel
- Contact Finish :
- Gold
- Feature :
- Board Guide
- Published :
- 2011
- Width :
- 37.3mm
- Color :
- Black
- Data Rate :
- 25 Gbps
- Length - Tail :
- 1.2mm
- Circuit Application :
- Signal
- Differential Pairs per Column :
- 6
- Impedance :
- 100Ohm
- Number of Columns :
- 10
- Connector Style :
- Impact, Guide Left
- RoHS Status :
- RoHS Compliant
- Termination :
- Press-Fit
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Rows :
- 18
- Max Current Rating :
- 750mA
- Packaging :
- Tube
- Length :
- 26.5938mm
- Contact Plating :
- Gold, Tin
- Height :
- 27.1018mm
- Operating Temperature :
- -55°C~ 85°C
- Gender :
- Receptacle
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Number of Ground Positions :
- 60
- Connector Usage :
- Daughtercard
- Series :
- Impact
- Number of Signal Positions :
- 120
- Differential Signaling :
- yes
- Make First / Break Last :
- No
- Hole Diameter :
- 381 µm
- PCB Thickness :
- 1mm
- Factory Lead Time :
- 13 Weeks
- Mount :
- Through Hole
- Housing Material :
- Polymer
- Orientation :
- RIGHT ANGLE
- Connector Type :
- Receptacle, Female Sockets
- Contact Current Rating :
- 750mA
- Shrouding :
- Unshrouded
- Number of Positions :
- 180
- Flammability Rating :
- UL94 V-0
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Current Rating (Amps) :
- 0.75A
- Operating Supply Voltage :
- 30V
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Mating Alignment :
- With
- Row Spacing :
- 1.35 mm
- Pitch :
- 1.905mm
- Material Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Number of Positions Loaded :
- All
- Datasheets
- 2007739-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 180 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2007739-1 Overview
Currently, it is packaged in Receptacle, Female Sockets.The mounting type of the device is Board Edge, Through Hole, Right Angle.A Tube case is used to package the product.A product of the Impact Series, it belongs to the range of products of that series.A number of features make the Board Guide feature more powerful.Through Hole represents the mounting point for the part.-55°C~ 85°C Operating Temperature is the default operating temperature for the device.If you supply the connector with a voltage of 30V, it will work.
2007739-1 Features
Impact series
2007739-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007739-1 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
