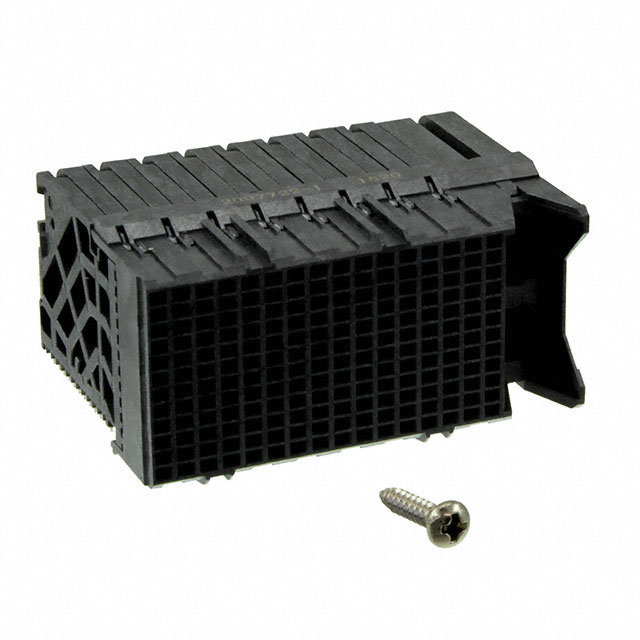

2007722-1
Or copy the link below:
- Mfr.Part #
- 2007722-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 192POS EDGE MNT
- Stock
- 142
- In Stock ：
- 142
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Impedance :
- 100Ohm
- Underplate Material :
- Nickel
- Length :
- 38mm
- Housing Material :
- Polymer
- Total Number of Contacts :
- 192
- Number Of PCB Rows :
- 12
- Number of Ground Positions :
- 64
- Published :
- 2011
- Material Flammability Rating :
- UL94 V-0
- Stack Height :
- 17.3mm
- Depth :
- 28.2mm
- Operating Supply Voltage :
- 30V
- Voltage - Rated DC :
- 30V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Current Rating :
- 750mA
- Current Rating :
- 750mA
- Max Voltage Rating (AC) :
- 120V
- Mating Alignment :
- With
- Number of Rows :
- 12
- Gender :
- Receptacle
- Number of Columns :
- 16
- Insulation Resistance :
- 10000000000Ohm
- Flammability Rating :
- UL94 V-0
- Number of Signal Positions :
- 128
- Orientation :
- RIGHT ANGLE
- Data Rate :
- 25 Gbps
- Contact Style :
- BLADE PIN-SKT
- Plating Thickness :
- 1.27μm
- Length - Tail :
- 1.2mm
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 11 Weeks
- Connector Type :
- Receptacle, Female Sockets
- Contact Finish :
- Gold
- Pitch :
- 0.075 1.91mm
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- PCB Mounting Orientation :
- RIGHT ANGLE
- REACH SVHC :
- Unknown
- Rated Current (Signal) :
- 0.75A
- Number of Positions :
- 192
- Circuit Application :
- Signal
- Height :
- 17.3mm
- Contact Material :
- Copper
- Polarization Key :
- POLARIZED HOUSING
- Shrouding :
- Unshrouded
- Number of Positions Loaded :
- All
- Reference Standard :
- UL, CSA
- Number of Conductors :
- ONE
- Differential Signaling :
- yes
- Mount :
- Edge, Through Hole
- Differential Pairs per Column :
- 4
- Max Current Rating :
- 750mA
- Row Spacing :
- 1.35 mm
- PCB Contact Pattern :
- RECTANGULAR
- Feature :
- Board Guide
- Packaging :
- Tube
- Reliability :
- COMMERCIAL
- Make First / Break Last :
- No
- Series :
- Impact
- Contact Finish Thickness :
- 30.0μin 0.76μm
- PCB Thickness :
- 1mm
- Contact Plating :
- Gold, Tin
- Contact Pattern :
- RECTANGULAR
- Connector Style :
- Impact, Guide Right
- Termination :
- Press-Fit
- Hole Diameter :
- 381 µm
- Durability :
- 200 Cycles
- Operating Temperature :
- -55°C~ 85°C
- Connector Usage :
- Daughtercard
- ELV :
- Compliant
- Width :
- 28.2mm
- Datasheets
- 2007722-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 192 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2007722-1 Overview
The product comes in a package of Receptacle, Female Sockets.Board Edge, Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Impact Series.It is more powerful in many ways due to its Board Guide feature.It is mounted by Edge, Through Hole.It operates at an operating temperature of -55°C~ 85°C.As long as the supply voltage is 30V, this Backplane Connector is functional.
2007722-1 Features
Impact series
2007722-1 Applications
There are a lot of TE Connectivity AMP Connectors
2007722-1 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
