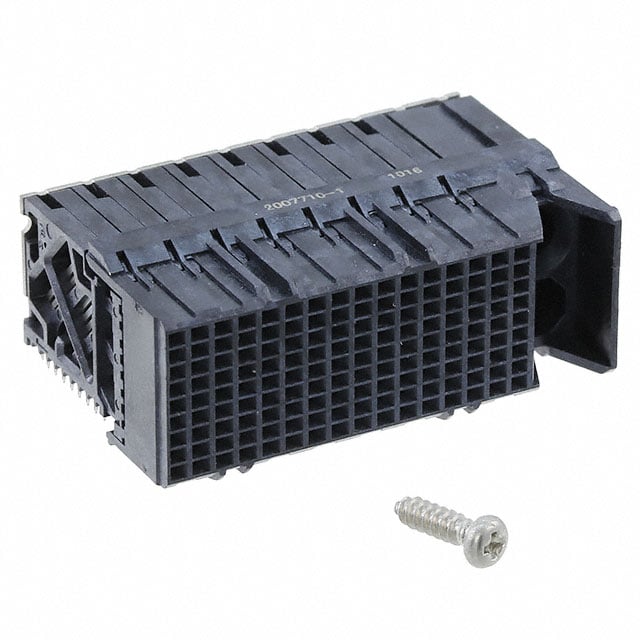

2007710-1
Or copy the link below:
- Mfr.Part #
- 2007710-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 144POS EDGE MNT
- Stock
- 47,713
- In Stock ：
- 47,713
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Termination :
- Press-Fit
- Mating Alignment :
- With
- PCB Thickness :
- 1mm
- Gender :
- Receptacle
- Differential Pairs per Column :
- 3
- Width :
- 24.2062mm
- Length :
- 38mm
- Flammability Rating :
- UL94 V-0
- Number Of PCB Rows :
- 9
- Published :
- 2011
- Stack Height :
- 13.3mm
- REACH SVHC :
- Unknown
- Circuit Application :
- Signal
- Connector Type :
- Receptacle, Female Sockets
- Number of Positions :
- 144
- Contact Style :
- SQ PIN-SKT
- Orientation :
- RIGHT ANGLE
- Packaging :
- Tube
- Contact Pattern :
- RECTANGULAR
- Contact Plating :
- Gold, Tin
- Differential Signaling :
- yes
- Dielectric Withstanding Voltage :
- 500VAC V
- Number of Positions Loaded :
- All
- Connector Usage :
- Daughtercard
- ELV :
- Compliant
- Number of Conductors :
- ONE
- Series :
- Impact
- Max Voltage Rating (DC) :
- 3.03kV
- Total Number of Contacts :
- 144
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Pitch :
- 0.075 1.91mm
- Hole Diameter :
- 381 µm
- Mount :
- Edge, Through Hole
- Operating Temperature :
- -55°C~ 85°C
- Reference Standard :
- UL, CSA
- Insulation Resistance :
- 1000000000Ohm
- RoHS Status :
- RoHS Compliant
- Feature :
- Board Guide
- PCB Mounting Orientation :
- RIGHT ANGLE
- Length - Tail :
- 1.2mm
- Contact Material :
- Copper
- Number of Signal Positions :
- 96
- Contact Finish :
- Gold
- PCB Contact Pattern :
- RECTANGULAR
- Housing Material :
- Polymer
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Rated Current (Signal) :
- 0.75A
- Contact Current Rating :
- 750mA
- Plating Thickness :
- 1.27μm
- Max Voltage Rating (AC) :
- 120V
- Data Rate :
- 25 Gbps
- Max Current Rating :
- 750mA
- Number of Rows :
- 9
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Contact Resistance :
- 10MOhm
- Depth :
- 24.2mm
- Voltage - Rated DC :
- 30V
- Number of Columns :
- 16
- Durability :
- 500 Cycles
- Connector Style :
- Impact, Guide Right
- Polarization Key :
- POLARIZED HOUSING
- Operating Supply Voltage :
- 30V
- Reliability :
- COMMERCIAL
- Row Spacing :
- 1.35 mm
- Color :
- Black
- Current Rating :
- 750mA
- Impedance :
- 100Ohm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 13.3096mm
- Material Flammability Rating :
- UL94 V-0
- Number of Ground Positions :
- 48
- Shrouding :
- Unshrouded
- Factory Lead Time :
- 13 Weeks
- Make First / Break Last :
- No
- Underplate Material :
- Nickel
- Datasheets
- 2007710-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 144 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2007710-1 Overview
The product is packaged in Receptacle, Female Sockets.This device is mounted in the Board Edge, Through Hole, Right Angle position.It has been determined that a Tube case is necessary to package the product.There is a product in the Impact Series.There are a number of advantages to its Board Guide feature.Part Edge, Through Hole is mounted to the part.As a result, the device runs at -55°C~ 85°C Operating Temperature.A supply voltage of 30V is required to operate this Backplane Connector.
