2007709-1
Or copy the link below:
- Mfr.Part #
- 2007709-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 144POS EDGE MNT
- Stock
- 56
- In Stock ：
- 56
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Insulation Resistance :
- 1000000000Ohm
- Contact Material :
- Copper
- Color :
- Black
- Contact Resistance :
- 10MOhm
- Operating Supply Voltage :
- 30V
- Depth :
- 24.2mm
- Packaging :
- Tube
- Published :
- 2011
- Connector Type :
- Receptacle, Female Sockets
- Height :
- 13.3096mm
- Differential Pairs per Column :
- 3
- Max Voltage Rating (AC) :
- 120V
- Length :
- 38mm
- Total Number of Contacts :
- 144
- Reference Standard :
- UL, CSA
- Number of Signal Positions :
- 96
- Termination :
- Press-Fit
- Mating Alignment :
- With
- Contact Plating :
- Gold, Tin
- Max Voltage Rating (DC) :
- 3.03kV
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Edge, Through Hole
- ELV :
- Compliant
- Orientation :
- RIGHT ANGLE
- Number of Positions Loaded :
- All
- Number of Columns :
- 16
- Flammability Rating :
- UL94 V-0
- Feature :
- Board Guide
- Connector Usage :
- Daughtercard
- Shrouding :
- Unshrouded
- Series :
- Impact
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Length - Tail :
- 1.2mm
- Pitch :
- 0.075 1.91mm
- Number of Conductors :
- ONE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Dielectric Withstanding Voltage :
- 500VAC V
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Rated Current (Signal) :
- 0.75A
- Contact Current Rating :
- 750mA
- Circuit Application :
- Signal
- Hole Diameter :
- 381 µm
- Number of Ground Positions :
- 48
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polymer
- Make First / Break Last :
- No
- Number of Positions :
- 144
- Number Of PCB Rows :
- 9
- Impedance :
- 100Ohm
- Max Current Rating :
- 750mA
- Current Rating :
- 750mA
- Width :
- 24.2062mm
- REACH SVHC :
- Unknown
- Contact Style :
- SQ PIN-SKT
- Contact Pattern :
- RECTANGULAR
- Gender :
- Receptacle
- Row Spacing :
- 1.35 mm
- Contact Finish :
- Gold
- PCB Contact Pattern :
- RECTANGULAR
- Plating Thickness :
- 1.27μm
- Polarization Key :
- POLARIZED HOUSING
- Reliability :
- COMMERCIAL
- Operating Temperature :
- -55°C~ 85°C
- Differential Signaling :
- yes
- Data Rate :
- 25 Gbps
- PCB Thickness :
- 1mm
- Underplate Material :
- Nickel
- Stack Height :
- 13.3mm
- Number of Rows :
- 9
- Voltage - Rated DC :
- 30V
- Durability :
- 500 Cycles
- Factory Lead Time :
- 13 Weeks
- PCB Mounting Orientation :
- RIGHT ANGLE
- Connector Style :
- Impact, Guide Left
- Datasheets
- 2007709-1

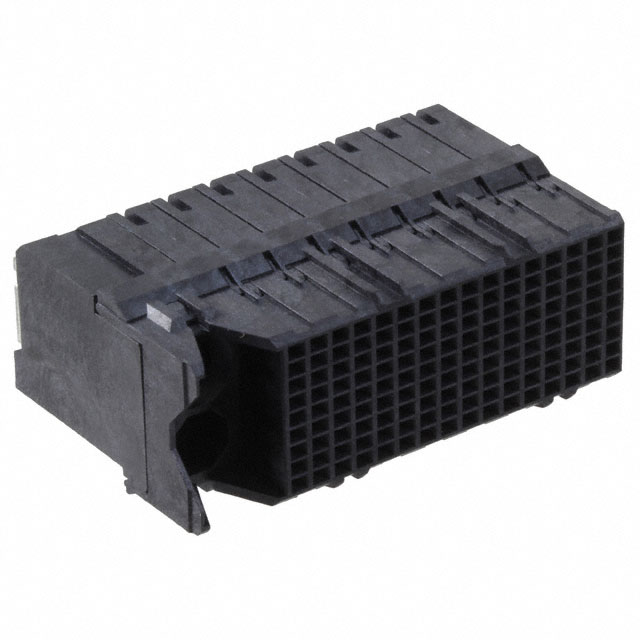

Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 144 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2007709-1 Overview
Packaging is in the form of Receptacle, Female Sockets.This device has a Board Edge, Through Hole, Right Angle mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Impact Series.Several benefits come from the Board Guide feature.There is a mounting hole at Edge, Through Hole.Devices operate at -55°C~ 85°C operating temperatures.A supply voltage of 30V is necessary for this Backplane Connector to work.
