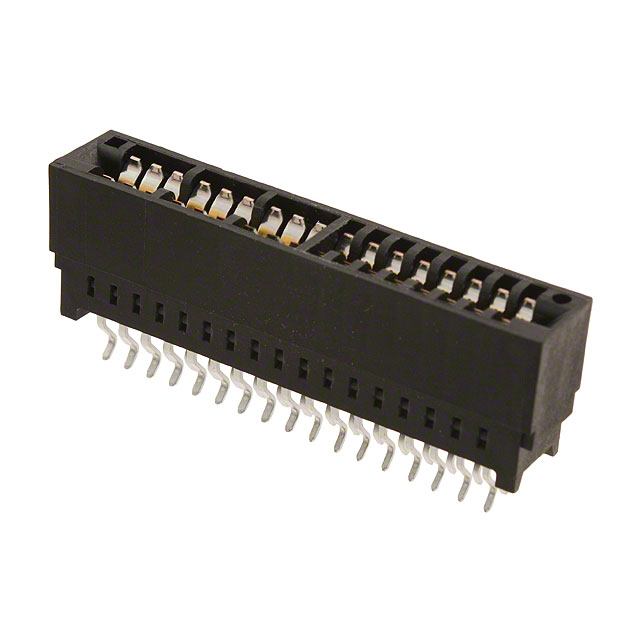

2007088-1
Or copy the link below:
- Mfr.Part #
- 2007088-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 22POS 0.100
- Stock
- 115
- In Stock ：
- 115
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Mounting Type :
- Surface Mount
- Pitch :
- 0.100 2.54mm
- Number of Signal Positions :
- 16
- Series :
- Standard Edge II
- Number of Power Positions :
- 6
- Number of Positions :
- 22 (16 + 6 Power)
- Contact Current Rating :
- 22A
- Flammability Rating :
- UL94 V-0
- Card Thickness :
- 0.054 ~ 0.070 1.37mm ~ 1.78mm
- Operating Supply Voltage :
- 400V
- PCB Mounting Orientation :
- Vertical
- Operating Temperature :
- -55°C~ 85°C
- Max Current Rating :
- 22A
- Published :
- 2007
- Number of Contacts :
- 22
- REACH SVHC :
- Unknown
- Mount :
- Surface Mount
- Contact Material :
- Copper
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Housing Color :
- Black
- Height :
- 13.97mm
- Orientation :
- Vertical
- ELV :
- Compliant
- Circuit Application :
- Power
- Number of Positions/Bay/Row :
- 1; 1; 1; 8
- Color :
- Black
- Read Out :
- Dual
- Connector Type :
- Socket
- Number of Rows :
- 2
- Contact Finish :
- Gold
- Housing Material :
- Polyester
- Gender :
- FEMALE
- Termination :
- Solder
- Plating :
- Gold
- Plating Thickness :
- 760 nm
- Max Operating Temperature :
- 105°C
- Underplate Material :
- Nickel
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- Gold, Tin
- Material - Insulation :
- Polyester, Glass Filled
- Min Operating Temperature :
- -55°C
- Packaging :
- Bulk
- Factory Lead Time :
- 16 Weeks
- Card Type :
- Non Specified - Dual Edge
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 2007088-1
