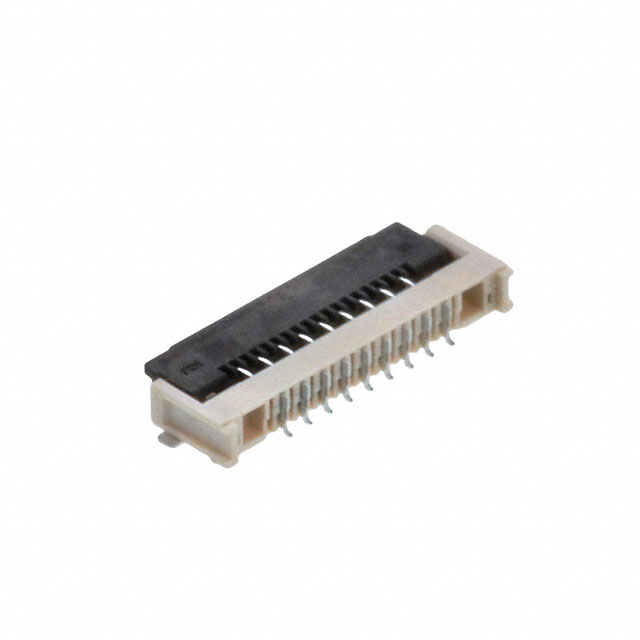

2005290090
Or copy the link below:
- Mfr.Part #
- 2005290090
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 1.0 FPC ZIF BTM CONT EMBT PKG 9C
- Stock
- 14,228
- In Stock ：
- 14,228
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Pbfree Code :
- yes
- Height Above Board :
- 0.075 1.90mm
- Actuator Color :
- Black
- Connector Type :
- FFC/FPC CONNECTOR
- Locking Feature :
- Flip Lock
- Operating Temperature :
- -40°C~85°C
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Packaging :
- Tape and Reel (TR)
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Pitch :
- 0.039 1.00mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flat Flex Type :
- FFC, FPC
- Series :
- Easy-On 200529
- Termination :
- Solder
- Contact Material :
- Phosphor Bronze
- FFC, FCB Thickness :
- 0.30mm
- Cable End Type :
- Straight, Tabbed
- Current Rating (Amps) :
- 0.5A per Contact
- Mating Cycles :
- 25
- Factory Lead Time :
- 18 Weeks
- Housing Color :
- Beige
- Published :
- 2016
- Contact Finish :
- TIN BISMUTH
- Connector/Contact Type :
- Contacts, Bottom
- Mounting Type :
- Surface Mount, Right Angle
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 9
- Datasheets
- 2005290090
Easy-On 200529 Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.039 1.00mm Solder 9 Positions Surface Mount, Right Angle Tin Bismuth -40°C~85°C 0.5A per Contact
2005290090 Overview
The product is packaged in FFC/FPC CONNECTOR.Surface Mount, Right Angle is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the Easy-On 200529 Series, it can be found in this category.With its Solder Retention, Zero Insertion Force (ZIF) feature, it is more powerful in many ways.The device is operating at -40°C~85°C Operating Temperature.
2005290090 Features
Easy-On 200529 series
2005290090 Applications
There are a lot of Molex
2005290090 FFC, FPC (Flat Flexible) Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
