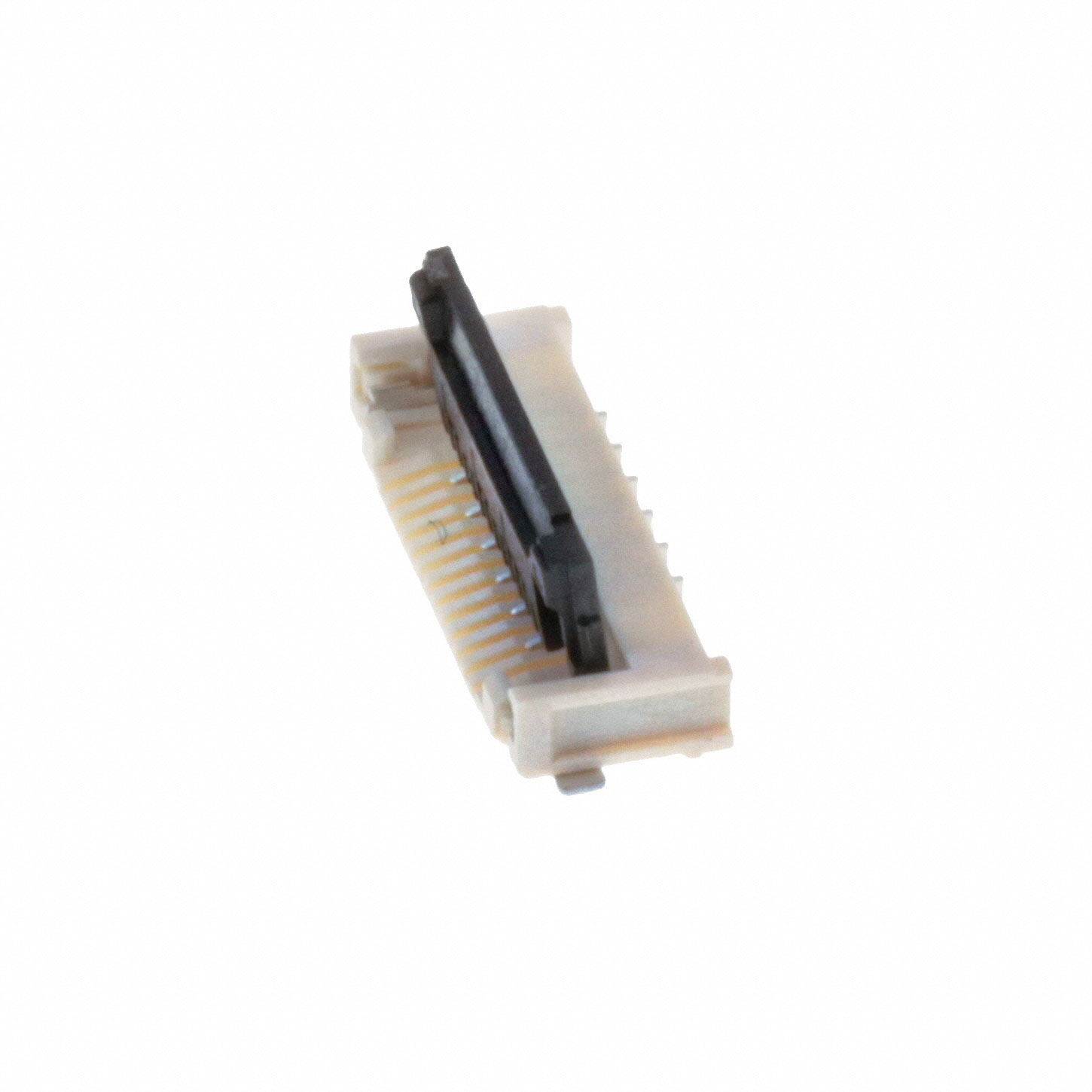

2005290060
Or copy the link below:
- Mfr.Part #
- 2005290060
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 1.0 FPC ZIF BTM CONT EMBT PKG 6C
- Stock
- 14,400
- In Stock ：
- 14,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Flat Flex Type :
- FFC, FPC
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Mating Cycles :
- 25
- Published :
- 2016
- Number of Positions :
- 6
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Material Flammability Rating :
- UL94 V-0
- Connector/Contact Type :
- Contacts, Bottom
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- ECCN Code :
- EAR99
- Height Above Board :
- 0.075 1.90mm
- Cable End Type :
- Straight, Tabbed
- Factory Lead Time :
- 18 Weeks
- Housing Color :
- Beige
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Pbfree Code :
- yes
- Mounting Type :
- Surface Mount, Right Angle
- Actuator Color :
- Black
- Locking Feature :
- Flip Lock
- Operating Temperature :
- -40°C~85°C
- Series :
- Easy-On 200529
- Packaging :
- Tape and Reel (TR)
- Contact Finish :
- TIN BISMUTH
- Contact Material :
- Phosphor Bronze
- FFC, FCB Thickness :
- 0.30mm
- Current Rating (Amps) :
- 0.5A per Contact
- Pitch :
- 0.039 1.00mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 2005290060
Easy-On 200529 Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.039 1.00mm Solder 6 Positions Surface Mount, Right Angle Tin Bismuth -40°C~85°C 0.5A per Contact
2005290060 Overview
Surface Mount, Right Angle is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the Easy-On 200529 Series.It is more powerful in many ways due to its Solder Retention, Zero Insertion Force (ZIF) feature.It operates at an operating temperature of -40°C~85°C.
2005290060 Features
Easy-On 200529 series
2005290060 Applications
There are a lot of Molex
2005290060 FFC, FPC (Flat Flexible) Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
