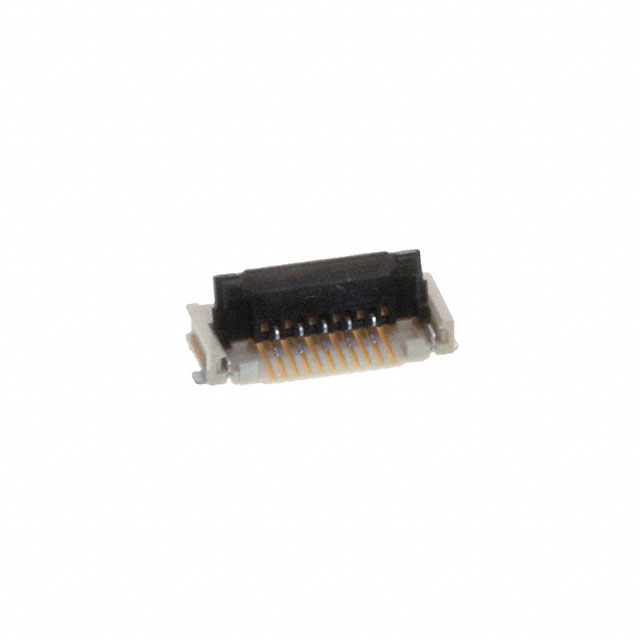

2005290050
Or copy the link below:
- Mfr.Part #
- 2005290050
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 1.0 FPC ZIF BTM CONT EMBT PKG 5C
- Stock
- 7,200
- In Stock ：
- 7,200
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Series :
- Easy-On 200529
- Pbfree Code :
- yes
- Cable End Type :
- Straight, Tabbed
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 18 Weeks
- Flat Flex Type :
- FFC, FPC
- Contact Finish :
- TIN BISMUTH
- Termination :
- Solder
- Pitch :
- 0.039 1.00mm
- Current Rating (Amps) :
- 0.5A per Contact
- Number of Positions :
- 5
- Operating Temperature :
- -40°C~85°C
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- ECCN Code :
- EAR99
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Height Above Board :
- 0.075 1.90mm
- Contact Material :
- Phosphor Bronze
- RoHS Status :
- ROHS3 Compliant
- FFC, FCB Thickness :
- 0.30mm
- Actuator Color :
- Black
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Connector/Contact Type :
- Contacts, Bottom
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Published :
- 2016
- Mounting Type :
- Surface Mount, Right Angle
- Housing Color :
- Beige
- Locking Feature :
- Flip Lock
- Mating Cycles :
- 25
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 2005290050
Easy-On 200529 Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.039 1.00mm Solder 5 Positions Surface Mount, Right Angle Tin Bismuth -40°C~85°C 0.5A per Contact
2005290050 Overview
Its mounting type is Surface Mount, Right Angle.Packaging is performed using a Tape & Reel (TR) case.It is part of the Easy-On 200529 Series of products.A number of features make it more powerful because of its Solder Retention, Zero Insertion Force (ZIF) feature.There is no operating temperature for the device.
2005290050 Features
Easy-On 200529 series
2005290050 Applications
There are a lot of Molex
2005290050 FFC, FPC (Flat Flexible) Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
