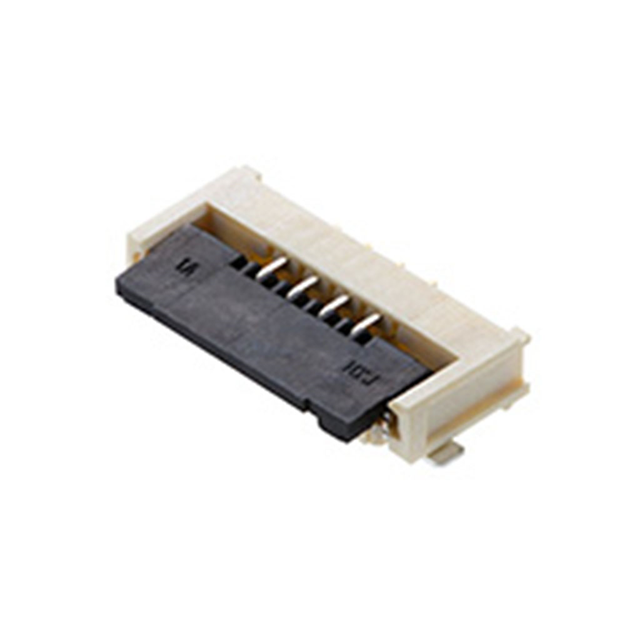

2005280140
Or copy the link below:
- Mfr.Part #
- 2005280140
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 1.0 FPC ZIF BTM CONT EMBT
- Stock
- 12,357
- In Stock ：
- 12,357
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Housing Color :
- Beige
- Wire/Cable Type :
- FFC/FPC
- Tradename :
- Easy-On
- RoHS :
- Details
- Locking Feature :
- Flip Lock
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Mating Cycles :
- 20
- Actuator Type :
- Flip
- Series :
- 200528
- Accessory Type :
- -
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Flat Flex Type :
- FFC, FPC
- Product :
- Board Mount
- Mounting Type :
- Surface Mount, Right Angle
- Connector/Contact Type :
- Contacts, Bottom
- Mounting Angle :
- RIGHT ANGLE
- Voltage Rating :
- 125 V
- Height Above Board :
- 0.075 (1.90mm)
- Actuator Color :
- Black
- Orientation :
- RIGHT ANGLE
- Number of Positions :
- 14 Position
- Contact Material :
- Phosphor Bronze
- Contact Plating :
- Gold
- Operating Temperature :
- -40°C ~ 105°C
- Features :
- Solder Retention, Zero Insertion Force (ZIF)
- Contact Location :
- Bottom Contact
- Contact Finish :
- Gold
- Maximum Operating Temperature :
- + 105 C
- Current Rating (Amps) :
- 1A
- Minimum Operating Temperature :
- - 40 C
- Product Status :
- Active
- Contact Finish Thickness :
- 2.00µin (0.051µm)
- FFC, FCB Thickness :
- 0.30mm
- Termination Style :
- SMD/SMT
- Cable End Type :
- Straight, Tabbed
- Material :
- LIQUID CRYSTAL POLYMER
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Base Product Number :
- 200528
- Current Rating :
- 1 A
- Pitch :
- 1 mm
- Datasheets
- 2005280140
2005280140 Documents
200528-0140 datasheet pdf and Flat Flex Cables (FFC, FPC) product details from Molex stock available at Xinshop
